| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance | |
| Color | |
| Configuration | |
| Current | |
| Emitting Color | |
| Height (Max) | |
| Junction Temperature | |
| Lens Color | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Lens Type | |
| Millicandela Rating | |
| Mounting Type | |
| Operating Temperature | |
| Peak Forward Current | |
| Power Dissipation | |
| Reverse Current | |
| Reverse Voltage | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

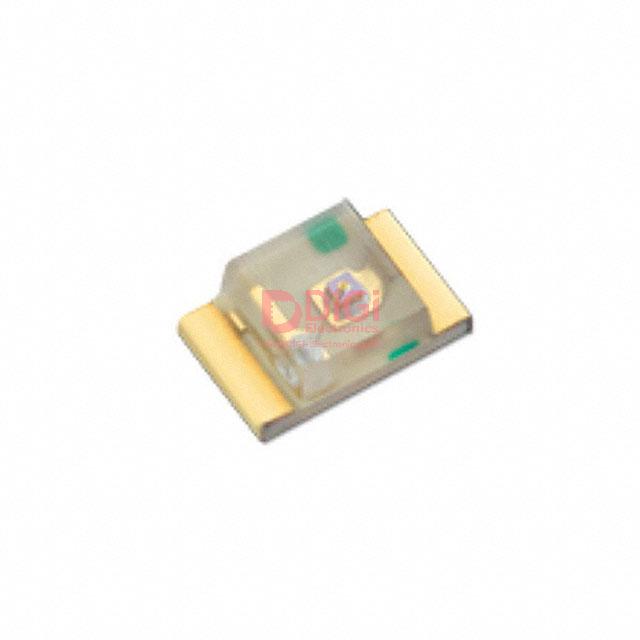

The Kingbright APT2012LSECK/J4-PRV is a 2.0 mm x 1.25 mm SMD LED designed for backlight and indicator applications. It emits Super Bright Orange light with a dominant wavelength of 605nm and a peak wavelength of 611nm.
This LED features a clear, colorless lens with a rectangle shape and flat top, providing a wide viewing angle of 120°. The typical forward voltage is 1.8V at 2mA, with a maximum forward voltage of 2.1V. The luminous intensity is rated between 80mcd and 150mcd at 2mA.
Packaged in a 0805 (2012 Metric) case, this component is suitable for surface mounting. It has a low power consumption and is ideal for use in home and smart appliances, wearable devices, and healthcare applications. The LED is supplied on a tape and reel with a standard package quantity of 2000 pieces.
Absolute maximum ratings include a power dissipation of 84mW, a reverse voltage of 5V, and a junction temperature of 115°C. The operating and storage temperature range is from -40°C to +85°C. It also has an electrostatic discharge threshold of 3000V (HBM).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The dominant wavelength is 605nm.
The typical forward voltage is 1.8V at 2mA.
The viewing angle is 120°.
The operating temperature range is -40°C to +85°C.
It is packaged in a 0805 (2012 Metric) case and supplied on a tape and reel with 2000 pieces per reel.
