| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,268 pcs
|
1268 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Emitting Color | |
| Halogen Free | |
| Height (Max) | |
| Junction Temperature | |
| Lens Color | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Millicandela Rating | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation | |
| Reverse Current | |
| Reverse Voltage | |
| Storage Temperature | |
| Supplier Device Package | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

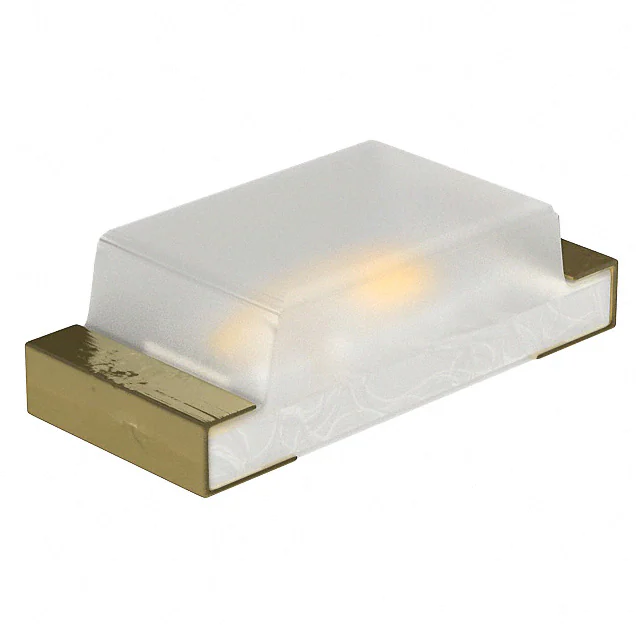

The Kingbright APT1608ZGC is a surface-mount device (SMD) LED designed for indication applications. It emits green light with a dominant wavelength of 525nm and a peak wavelength of 515nm. The LED features a clear, colorless lens in a rectangle shape with a flat top, providing a wide viewing angle of 120 degrees.
This component is housed in a compact 0603 (1608 Metric) package, measuring 1.60mm in length and 0.80mm in width, with a maximum height of 0.75mm. It is designed for surface mounting and operates with a typical forward voltage of 3.3V at a test current of 20mA. The luminous intensity is rated at 400mcd typical.
The APT1608ZGC is suitable for various applications including backlighting and status indication. It operates within a temperature range of -40°C to +85°C and is compliant with RoHS3 standards. The LED is supplied in tape and reel packaging, with a standard package quantity of 2000 pieces per reel. Electrostatic discharge precautions are recommended during handling.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The dominant wavelength is 525nm.
The typical forward voltage is 3.3V.
The viewing angle is 120 degrees.
The package type is 0603 (1608 Metric) for surface mounting.
The operating temperature range is -40°C to +85°C.
Yes, it is RoHS3 Compliant.
The Moisture Sensitivity Level is 3.
