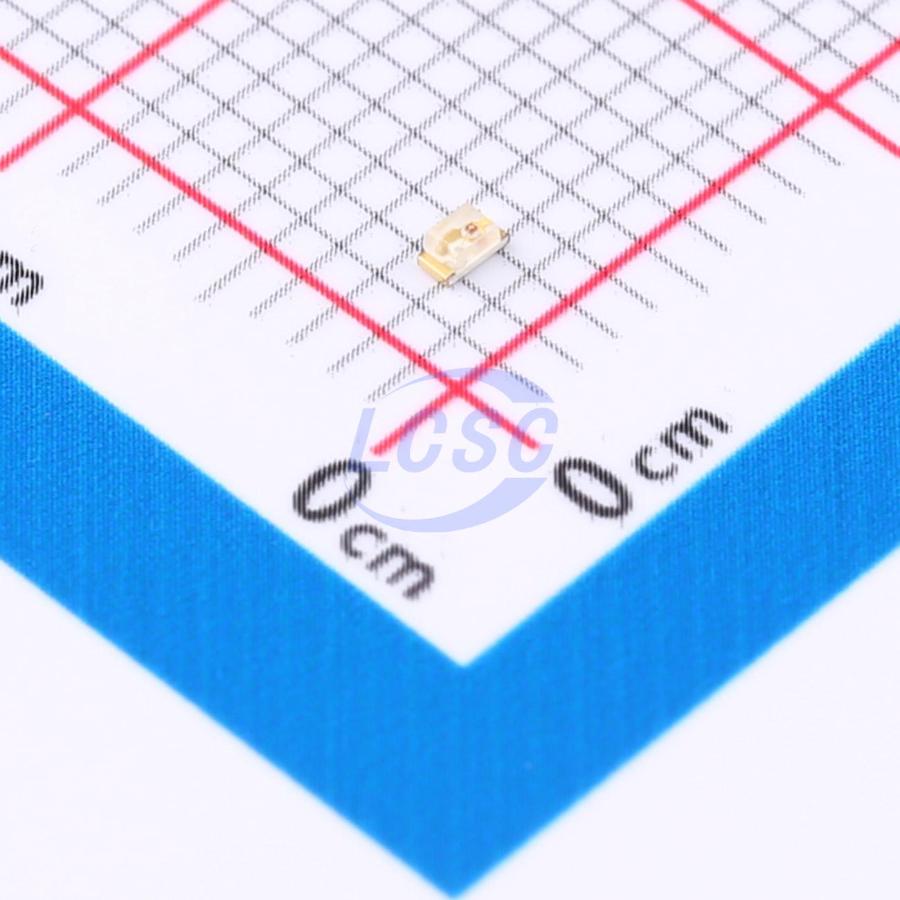

APT1608EC The Kingbright APT1608EC is a High Efficiency Red SMD LED with a clear, colorless lens. It features a 1.6mm x 0.8mm package and a 150° viewing angle.
Mfr Part #:

APT1608EC

Available from 7 distributors
Mfr Name: Kingbright
Kingbright
The Kingbright APT1608EC is a High Efficiency Red SMD LED with a clear, colorless lens. It features a 1.6mm x 0.8mm package and a 150° viewing angle.
✓ Total Stock: 84,930 pcs
$ Price Range: $0.06

APT1608EC Available from 7 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

APT1608EC Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Capacitance
Color
Configuration
Current
Halogen Free
Height (Max)
Junction Temperature
Lens Color
Lens Size
Lens Style
Lens Transparency
Millicandela Rating
Mounting Type
Operating Temperature
Peak Forward Current
Power Dissipation
Reverse Current
Reverse Voltage
Storage Temperature
Supplier Device Package
Tape & Reel
Viewing Angle
Voltage
Wavelength
View Similar Products (0)

APT1608EC Description

Short technical summary and product information.

The Kingbright APT1608EC is a compact 1.6mm x 0.8mm SMD LED designed for backlight and indicator applications. It emits a High Efficiency Red light with a dominant wavelength of 617nm and a peak emission wavelength of 627nm. The LED offers a typical luminous intensity of 15mcd at 20mA and a wide viewing angle of 150°.



This device is constructed with Gallium Arsenide Phosphide on Gallium Phosphide material. It has a low power consumption and a thickness of 0.75mm, making it suitable for space-constrained designs. The operating temperature range is -40°C to +85°C, and it is rated for a maximum forward current of 30mA and a peak forward current of 160mA.



The APT1608EC is supplied in a 2000 pcs/reel package and is RoHS3 compliant and Halogen-free. Its small footprint and reliable performance make it ideal for home and smart appliances, wearable devices, and healthcare applications.

APT1608EC Quick Information

Product Type: SMD LED
Canonical Name: Kingbright APT1608EC High Efficiency Red SMD LED
Subcategory: SMD LED

APT1608EC Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

APT1608EC Estimated Pricing

Qty Low High
1+ $0.06 $0.06

Estimated market price range - modelled values for guidance only, not live distributor offers.

APT1608EC Features

  • High Efficiency Red SMD LED.
  • Compact 1.6mm x 0.8mm package.
  • Wide 150° viewing angle.
  • Typical luminous intensity of 15mcd.
  • RoHS3 compliant and Halogen-free.

APT1608EC Applications

  • Ideal for backlighting.
  • Suitable for status indicators.
  • Used in home appliances.
  • Applicable to smart appliances.
  • Designed for portable devices.

APT1608EC FAQs

7 frequently asked questions generated from this part’s specifications.
What is the dominant wavelength of the Kingbright APT1608EC LED?

The dominant wavelength is 617nm.

What is the typical luminous intensity of the APT1608EC LED at 20mA?

The typical luminous intensity is 15mcd.

What is the viewing angle of the Kingbright APT1608EC?

The viewing angle is 150°.

What is the package type for the APT1608EC LED?

The package type is 0603 (1608 Metric) SMD.

What is the operating temperature range for this LED?

The operating temperature range is -40°C to +85°C.

Is the Kingbright APT1608EC RoHS compliant?

Yes, it is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the APT1608EC?

The Moisture Sensitivity Level is 1 Unlimited.
