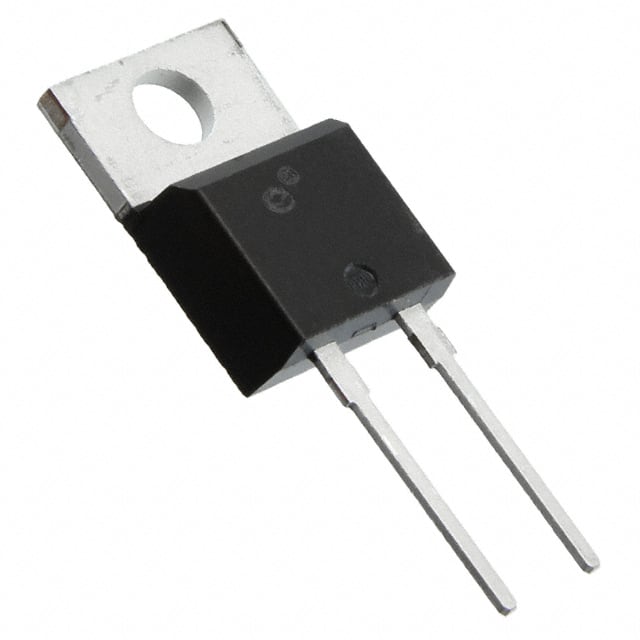

The APT15D60KG is an ultrafast soft recovery rectifier diode manufactured by Microchip Technology. It is rated for a maximum repetitive peak reverse voltage of 600V and an average forward current of 15A at a case temperature of 133°C with a 50% duty cycle. The device features a low forward voltage of 1.8V maximum at 15A and 25°C, and a typical reverse recovery time of 80ns under standard test conditions (IF=15A, diF/dt=-200A/µs, VR=400V, TJ=25°C).
This diode is designed for applications requiring fast switching with soft recovery characteristics, which helps reduce electromagnetic interference and switching losses. It is suitable for use as an anti-parallel diode in switchmode power supplies, inverters, motor controllers, and power factor correction circuits. The device operates over a junction temperature range of -55°C to 175°C.
The APT15D60KG is housed in a standard TO-220-2 through-hole package with a Pb-free terminal finish. It is RoHS compliant, making it suitable for use in environmentally sensitive designs. The package offers a maximum thermal resistance of 1.35°C/W from junction to case, enabling efficient heat dissipation.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.76 | $1.76 |
| 100+ | $1.45 | $1.45 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum repetitive peak reverse voltage (VRRM) is 600V.
The maximum average forward current is 15A at a case temperature of 133°C with a 50% duty cycle.
The forward voltage is 1.6V minimum and 1.8V maximum at 15A and 25°C.
The typical reverse recovery time is 80ns at IF=15A, diF/dt=-200A/µs, VR=400V, and TJ=25°C.
The APT15D60KG is available in a TO-220-2 through-hole package.
Yes, the APT15D60KG is RoHS compliant and has a Pb-free terminal finish.
