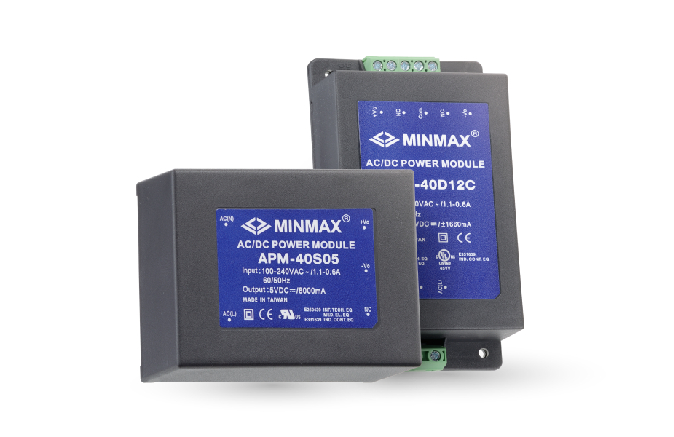

The MINMAX APM-40 series, including the APM-40S05, are fully encapsulated AC-DC power modules designed for industrial and medical applications. These modules feature a universal input voltage range of 85-264VAC and operate across a wide ambient temperature range from -40℃ to +80℃. They provide 4000VAC of I/O isolation with reinforced insulation, ensuring safety and reliability.
The APM-40S05 meets stringent safety and EMC standards, including EMI Emission EN 55011/32 Class B approval and EMC Immunity EN 61000-4-2,3,4,5,6,8,11. It also holds Medical EMC and Safety approvals (2xMOPP per IEC/EN 60601-1) and UL508 safety approval for industrial use. The modules are compliant with UL/cUL/IEC/EN 62368-1 and carry CE marking.
Designed for PCB, chassis, and DIN-rail mounting, these power modules offer overload, overvoltage, and short circuit protection. Their robust construction and comprehensive approvals make them suitable for demanding commercial, medical, and industrial electronic equipment where space is critical.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The APM-40S05 has a universal input voltage range of 85-264VAC.
The operating ambient temperature range for the APM-40S05 is -40℃ to +80℃.
The APM-40S05 provides 4000VAC of I/O isolation with reinforced insulation.
Yes, the APM-40S05 meets medical safety standards with 2xMOPP per 3.2 Edition of IEC/EN 60601-1 & ANSI/AAMI ES60601-1.
The APM-40S05 has UL508 Safety Approval specifically for industrial applications.
