| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,777 pcs
|
1777 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
712 pcs
|
712 pcs | On Request | 1 | On Request | On Request | 11+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Noise | |
| Output Current | |
| Output Type | |
| Quiescent Current | |
| Weight |

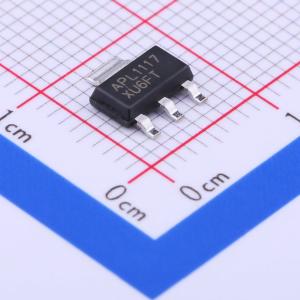

The APL1117VC-TRG from Anpec Electronics Corporation is a low-dropout (LDO) three-terminal adjustable voltage regulator designed for applications requiring up to 1A of output current. It is optimized for low voltage applications, offering fast transient response and a low dropout voltage, typically 1.1V at 1A.
The adjustable output voltage can be set between 1.25V and 10.7V. Key electrical characteristics include a typical quiescent current of 10mA, a power supply ripple rejection of 60dB at 120Hz, and an output voltage accuracy within 2%. The device incorporates overcurrent protection and thermal shutdown features to prevent damage under fault conditions.
This regulator is supplied in a SOT-223 surface-mount package, making it suitable for space-constrained designs. It is also available in RoHS3 compliant versions.
Typical applications include active SCSI terminators, low voltage logic power supplies, and post-regulators for switching power supplies.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The adjustable output voltage range for the APL1117VC-TRG is 1.25V to 10.7V.
The maximum output current for the APL1117VC-TRG is 1A.
The dropout voltage is a maximum of 1.3V at 1A output current, with a typical value of 1.1V.
The operating temperature range (junction temperature) for the APL1117VC-TRG is 0°C to 125°C.
The APL1117VC-TRG is supplied in a SOT-223 surface-mount package.
