IEG6-1-52-15.0-01-V
Sensata
1-pole 15A magnetic hydraulic delay circuit breaker from Sensata with lever actuator and panel mount. Compliant with UL1077, CSA, and TUV.
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Mounting Type | |
| Number of Poles |

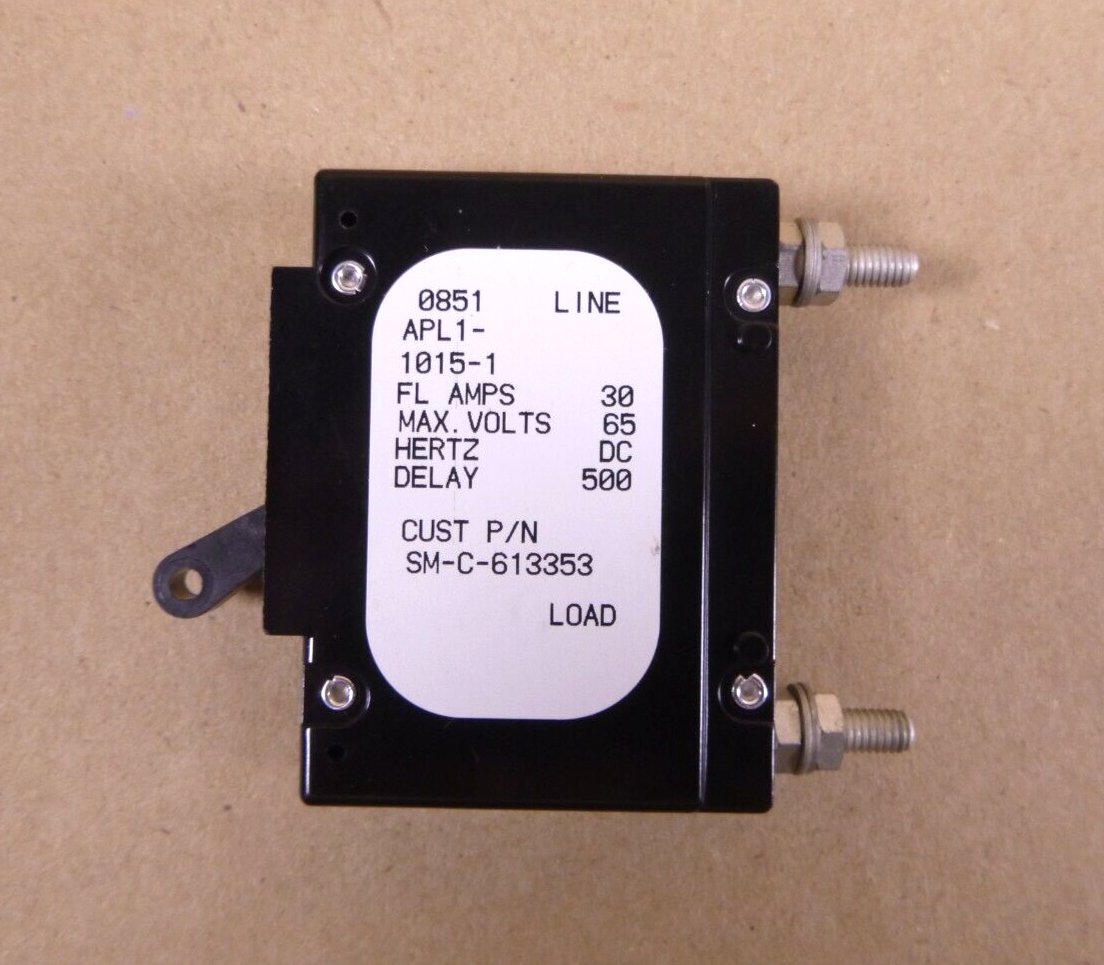

The Sensata APL1-1015-1 is a hydraulic magnetic circuit breaker designed for reliable power switching, circuit protection, and control. It features a single pole and lever actuation for manual operation, similar to an ON-OFF switch. Upon detecting an overload, the internal mechanism trips, opening the contacts and forcibly returning the handle to the OFF position. This protector is 'trip free,' meaning the internal contacts will not remain closed under overload conditions, even if the handle is held in the ON position.
This APL/UPL series breaker is designed for panel mounting. It is important to note that the APL/UPL series is a legacy product, and Sensata Technologies recommends utilizing the Airpax™ IAL series for new designs. While designed for industrial, military, and information processing applications, it is suitable for any situation requiring precision operation.
Most versions of the APL family are recognized by UL per UL STD. 1077 as supplementary protectors and certified by CSA per CSA STD. C22.2–No. 235 as supplementary protectors. The APL/UPL line offers many configurations including series, shunt, and relay with a choice of delays and ratings. Multi-pole assemblies are also available.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Panel Mount
Magnetic (Hydraulic Delay)
Lever
1
RoHS3 Compliant
1 Unlimited
REACH Unaffected
