| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | 1336+ | On Request | On Request | |
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance | |
| Color | |
| Configuration | |
| Current | |
| Height (Max) | |
| Lens Color | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Millicandela Rating | |
| Mounting Type | |
| Operating Temperature | |
| Peak Forward Current | |
| Power Dissipation | |
| Reverse Current | |
| Reverse Voltage | |
| Spectral Bandwidth | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

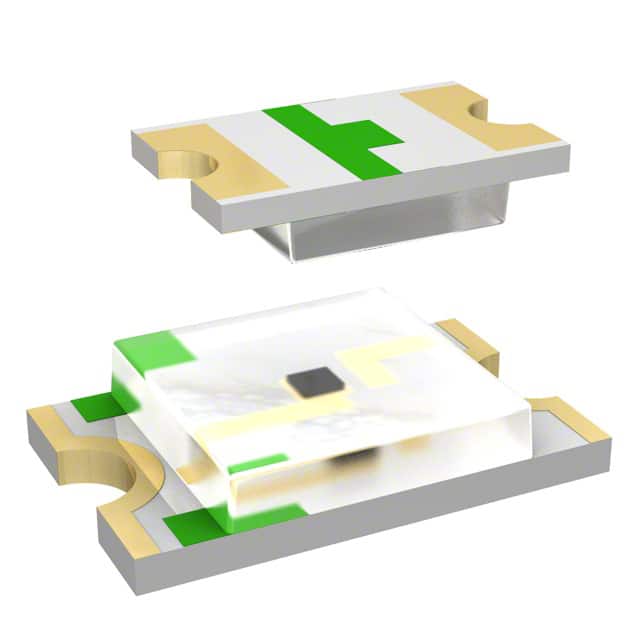

The Kingbright APHCM2012SURCK-F01 is a Hyper Red SMD LED designed for various applications including backlighting and status indication. It is constructed using AlGaInP on a GaAs substrate and features a water-clear lens.
Key electrical specifications include a typical forward voltage of 1.95V at 20mA, a peak emission wavelength of 645nm, and a dominant wavelength of 630nm. The luminous intensity is typically 230mcd at 20mA, with a wide viewing angle of 140°.
This LED comes in a compact 0805 (2012 Metric) package measuring 2.00mm L x 1.25mm W with a maximum height of 0.40mm. It is suitable for surface mounting and is supplied on tape and reel in quantities of 2000 pieces.
Applications include home and smart appliances, wearable and portable devices, and healthcare applications. It is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical forward voltage is 1.95V at 20mA.
The peak emission wavelength is 645nm.
The typical luminous intensity is 230mcd at 20mA.
The typical viewing angle is 80°.
It is a 0805 (2012 Metric) SMD LED.
The standard package is 2000 pieces per reel.
