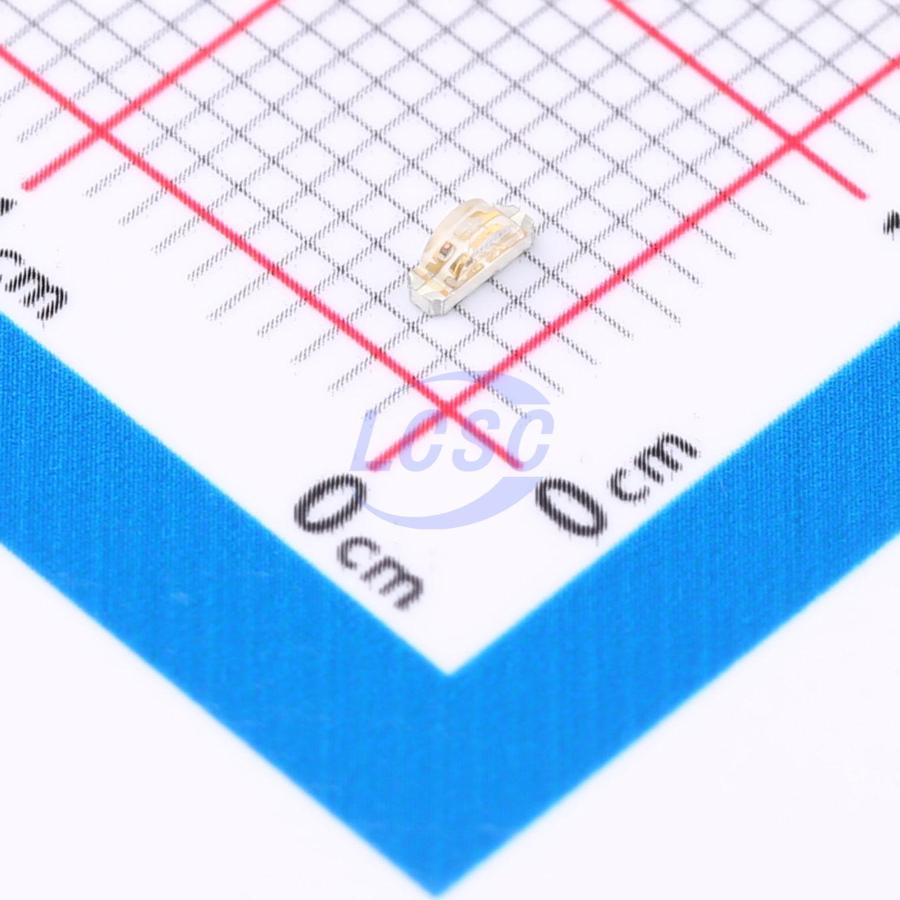

APFA3010SEEZGQBDC The Kingbright APFA3010SEEZGQBDC is a right-angle SMD LED capable of displaying Red, Green, and Blue light. It features a wide 120° viewing angle.
Mfr Part #:

APFA3010SEEZGQBDC

Available from 1 distributors
Mfr Name: Kingbright
Kingbright
The Kingbright APFA3010SEEZGQBDC is a right-angle SMD LED capable of displaying Red, Green, and Blue light. It features a wide 120° viewing angle.
✓ Total Stock: 49 pcs
$ Price Range: $0.48

APFA3010SEEZGQBDC Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
49 pcs
On Request
49 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

APFA3010SEEZGQBDC Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Configuration
Current
Halogen Free
Height
Height (Max)
Lens Color
Lens Size
Lens Style
Lens Transparency
Millicandela Rating
Mounting Type
Supplier Device Package
Tape & Reel
Viewing Angle
Voltage
Wavelength
View Similar Products (0)

APFA3010SEEZGQBDC Description

Short technical summary and product information.

The Kingbright APFA3010SEEZGQBDC is a versatile RGB (Red, Green, Blue) surface-mount right-angle LED designed for various indication applications. This compact chip LED measures 3.0mm x 1.5mm with a height of 1.0mm, making it suitable for space-constrained designs.



It offers distinct electrical and optical characteristics for each color. The red emission has a peak wavelength of 630nm and a typical luminous intensity of 140mcd at 20mA. The green emission features a dominant wavelength of 525nm and a typical intensity of 300mcd at 20mA. The blue emission has a dominant wavelength of 465nm and a typical intensity of 70mcd at 20mA. All colors share a wide 120° viewing angle.



The LED operates with a forward voltage of 2V for red and 3.3V for green and blue, all at a typical current of 20mA. It is housed in a 4-SMD, No Lead package and is designed for surface mounting with a right-angle orientation. The operating temperature range is from -40°C to +85°C.



This component is supplied in reels of 2000 pieces and is RoHS3 compliant and Halogen-free, suitable for applications requiring environmental considerations.

APFA3010SEEZGQBDC Quick Information

Product Type: SMD LED
Canonical Name: Kingbright APFA3010SEEZGQBDC RGB SMD LED
Subcategory: Discrete LED

APFA3010SEEZGQBDC Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1
REACH Status: REACH Unaffected

APFA3010SEEZGQBDC Estimated Pricing

Qty Low High
1+ $0.48 $0.48

Estimated market price range - modelled values for guidance only, not live distributor offers.

APFA3010SEEZGQBDC Features

  • RGB color output capability.
  • Wide 120 degree viewing angle.
  • Compact 3.0 x 1.5 x 1.0 mm size.
  • Surface mount right-angle package.
  • RoHS3 compliant and Halogen-free.

APFA3010SEEZGQBDC Applications

  • Ideal for status indicators.
  • Suitable for backlight applications.
  • Used in home appliances.
  • Applicable for wearable devices.
  • Designed for healthcare applications.

APFA3010SEEZGQBDC FAQs

5 frequently asked questions generated from this part’s specifications.
What colors can the Kingbright APFA3010SEEZGQBDC LED display?

The Kingbright APFA3010SEEZGQBDC LED can display Red, Green, and Blue light.

What is the viewing angle of the APFA3010SEEZGQBDC LED?

The viewing angle of the APFA3010SEEZGQBDC LED is 120 degrees.

What are the typical forward voltages for the APFA3010SEEZGQBDC LED?

The typical forward voltage for the red color is 2V, and for green and blue colors is 3.3V, all at 20mA.

What is the package type for the APFA3010SEEZGQBDC LED?

The APFA3010SEEZGQBDC LED is supplied in a 4-SMD, No Lead package.

What is the operating temperature range for this LED?

The operating temperature range for the APFA3010SEEZGQBDC LED is -40°C to +85°C.
