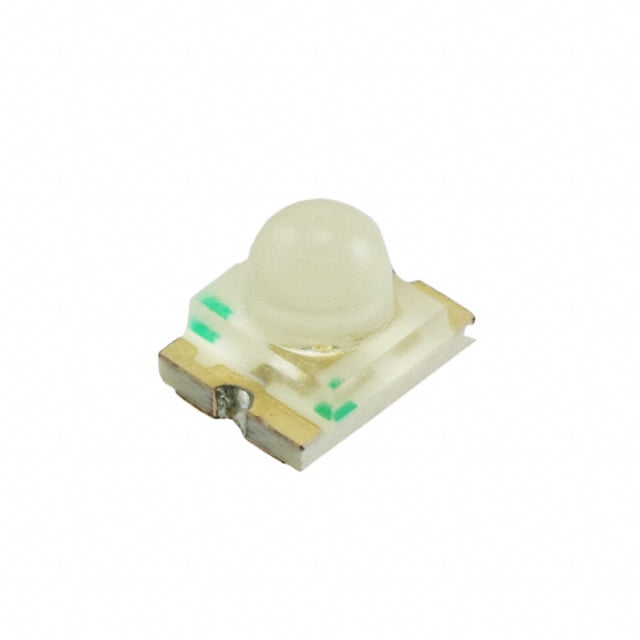

APD3224SURCK-F01 The Kingbright APD3224SURCK-F01 is a Hyper Red SMD LED. It offers a typical forward voltage of 1.95V and a 20° viewing angle.
Mfr Part #:

APD3224SURCK-F01

Available from 1 distributors
Mfr Name: Kingbright
Kingbright
The Kingbright APD3224SURCK-F01 is a Hyper Red SMD LED. It offers a typical forward voltage of 1.95V and a 20° viewing angle.
✓ Total Stock: 17 pcs
$ Price Range: $0.99

APD3224SURCK-F01 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
17 pcs
On Request
17 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

APD3224SURCK-F01 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Configuration
Current
Emitting Color
Halogen Free
Height (Max)
Junction Temperature
Lens Color
Lens Size
Lens Style
Lens Transparency
Millicandela Rating
Mounting Type
Operating Temperature
Peak Forward Current
Power Dissipation
Reverse Current
Reverse Voltage
Storage Temperature
Supplier Device Package
Viewing Angle
Voltage
Wavelength
View Similar Products (0)

APD3224SURCK-F01 Description

Short technical summary and product information.

The Kingbright APD3224SURCK-F01 is a Hyper Red SMD LED designed for various applications. It is constructed using AlGaInP on a GaAs substrate.



Key electrical specifications include a peak emission wavelength of 645nm and a dominant wavelength of 630nm. The typical forward voltage is 1.95V at 20mA, with a maximum of 2.5V. The typical luminous intensity is rated at 1300mcd at 20mA, with a typical viewing angle of 20°.



This LED is housed in a 3.2 x 2.4 mm SMD package with a thickness of 2.4 mm. It operates within a temperature range of -40°C to +85°C and has a maximum power dissipation of 75mW. The device is halogen-free and RoHS compliant.



Applications include backlighting, status indication, and use in home and smart appliances, wearable devices, and healthcare applications.

APD3224SURCK-F01 Quick Information

Product Type: SMD LED
Canonical Name: Kingbright APD3224SURCK-F01 Hyper Red SMD LED
Subcategory: Discrete LED

APD3224SURCK-F01 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 3 (168 Hours)
REACH Status: REACH Unaffected

APD3224SURCK-F01 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

APD3224SURCK-F01 Features

  • Hyper Red SMD LED with AlGaInP material.
  • 645nm peak emission wavelength.
  • 1.95V typical forward voltage.
  • 20° typical viewing angle.
  • 3.2 x 2.4 mm SMD package.

APD3224SURCK-F01 Applications

  • Ideal for backlight applications.
  • Suitable for status indicators.
  • Used in home appliances.
  • Applicable for wearable devices.
  • Useful in healthcare applications.

APD3224SURCK-F01 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the typical forward voltage for the APD3224SURCK-F01?

The typical forward voltage for the APD3224SURCK-F01 is 1.95V at 20mA.

What is the peak emission wavelength of the APD3224SURCK-F01?

The peak emission wavelength for the APD3224SURCK-F01 is 645nm.

What is the viewing angle of the APD3224SURCK-F01?

The typical viewing angle for the APD3224SURCK-F01 is 20°.

What are the operating temperature limits for the APD3224SURCK-F01?

The APD3224SURCK-F01 has an operating temperature range of -40°C to +85°C.

What is the package type for the APD3224SURCK-F01?

The APD3224SURCK-F01 is supplied in a 1210 (3225 Metric) SMD package.

Is the APD3224SURCK-F01 RoHS compliant?

Yes, the APD3224SURCK-F01 is RoHS3 compliant.
