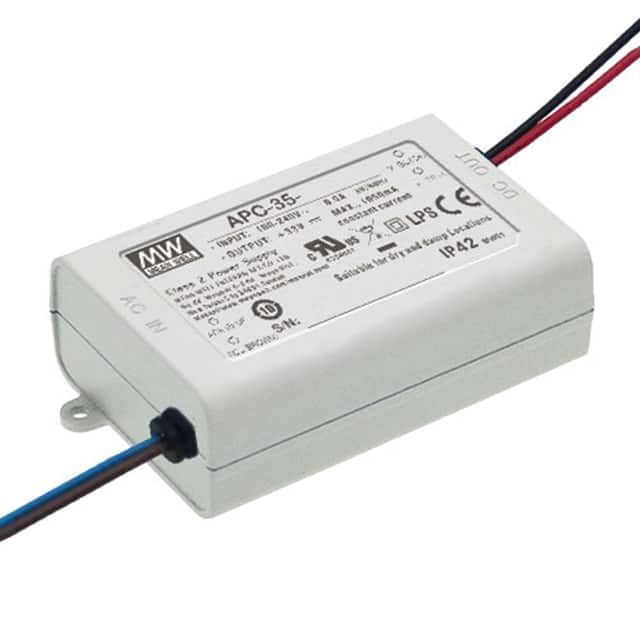

APC-35-350 Mean Well USA APC-35-350 constant current LED driver with 350mA output, 35W power, and 84% efficiency. Suitable for indoor LED lighting applications.
Mfr Part #:

APC-35-350

Available from 1 distributors
Mfr Name: Mean Well USA
Mean Well USA
Mean Well USA APC-35-350 constant current LED driver with 350mA output, 35W power, and 84% efficiency. Suitable for indoor LED lighting applications.
✓ Total Stock: 144 pcs
$ Price Range: $10.90 - $12.40

APC-35-350 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
144 pcs
On Request
144 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

APC-35-350 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Approval Agency
Current
Efficiency
Features
Height
Length
Number of Outputs
Operating Temperature
Power (Watts)
Ratings
Termination Style
Topology
Type
Voltage
Width
View Similar Products (0)

APC-35-350 Description

Short technical summary and product information.

The Mean Well USA APC-35-350 is a constant current LED driver delivering 350mA output current with a voltage range of 28-100V and 35W output power. It operates from a 90VAC input, achieving 84% efficiency.



This driver features overvoltage protection (OVP) and short circuit protection (SCP) for reliable operation. The IP42-rated enclosure protects against solid objects larger than 1mm and water spray, making it suitable for indoor use. Termination is via wire leads.



The APC-35-350 uses an AC-DC converter topology and has a single output. It operates over a wide temperature range of -30°C to +70°C. The compact metal case measures 84.0mm x 57.0mm x 29.5mm.

APC-35-350 Quick Information

Product Type: LED Driver
Canonical Name: Mean Well USA APC-35-350 Constant Current LED Driver
Subcategory: Constant Current AC-DC LED Driver

APC-35-350 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

APC-35-350 Estimated Pricing

Qty Low High
1+ $12.40 $12.40
5+ $11.80 $11.80
10+ $11.20 $11.20
20+ $10.90 $10.90

Estimated market price range - modelled values for guidance only, not live distributor offers.

APC-35-350 Features

  • Constant current output of 350mA.
  • 84% efficient AC-DC converter.
  • Overvoltage and short circuit protection.
  • IP42 rated for dust and drip resistance.
  • Wire leads termination for easy connection.

APC-35-350 Applications

  • Ideal for indoor LED lighting fixtures.
  • Used in commercial and residential signage.
  • Suitable for constant current LED strips.
  • Applicable in display lighting applications.

APC-35-350 FAQs

3 frequently asked questions generated from this part’s specifications.
What is the output current of the APC-35-350?

The output current is 350mA constant current.

What is the operating temperature range?

The operating temperature range is -30°C to +70°C.

Is the APC-35-350 RoHS compliant?

RoHS status is unverified but currently listed as RoHS3 Compliant.
