| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
120 pcs
|
120 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| IP Rating | |
| Input Voltage | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Package / Case | |
| Power (Watts) | |
| Ratings | |
| Termination Style | |
| Topology | |
| Type | |
| Voltage | |
| Width |

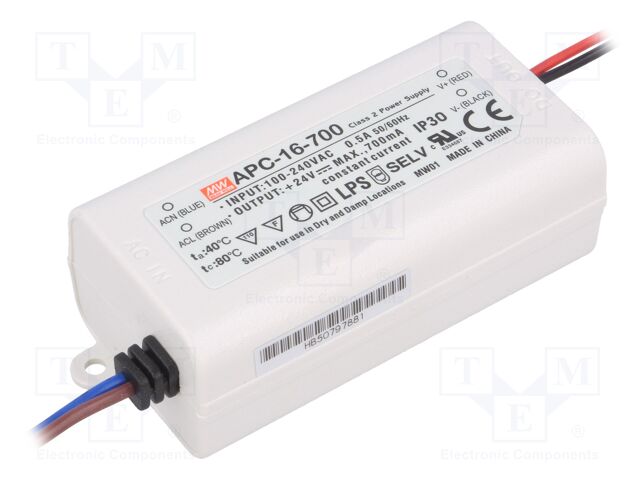

The Mean Well USA APC-16-700 is a constant current LED driver designed for reliable LED lighting applications. It delivers a 700mA output current with a 17W power rating, operating from a 90VAC nominal input voltage. The driver achieves 83% efficiency and includes overvoltage protection (OVP) and short circuit protection (SCP) for enhanced safety and reliability.
With an IP42 rating, the APC-16-700 is suitable for indoor and protected environments. It features a chassis-mountable module package with wire lead terminations, measuring 77.0mm x 40.0mm x 29.0mm. The device operates over a temperature range of -30°C to 70°C.
The driver is approved by CCC, CE, and cURus agencies, ensuring compliance with international standards. It uses an AC-DC converter topology to provide a steady constant current output, making it an ideal choice for powering LED modules and luminaires.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.70 | $6.70 |
| 5+ | $6.30 | $6.30 |
| 10+ | $6.10 | $6.10 |
| 20+ | $5.90 | $5.90 |
| 240+ | $5.89 | $5.89 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output current is 700mA constant current.
The operating temperature range is -30°C to 70°C.
RoHS compliance is indicated as RoHS3 compliant but has not been independently verified.
It includes overvoltage protection (OVP) and short circuit protection (SCP).
