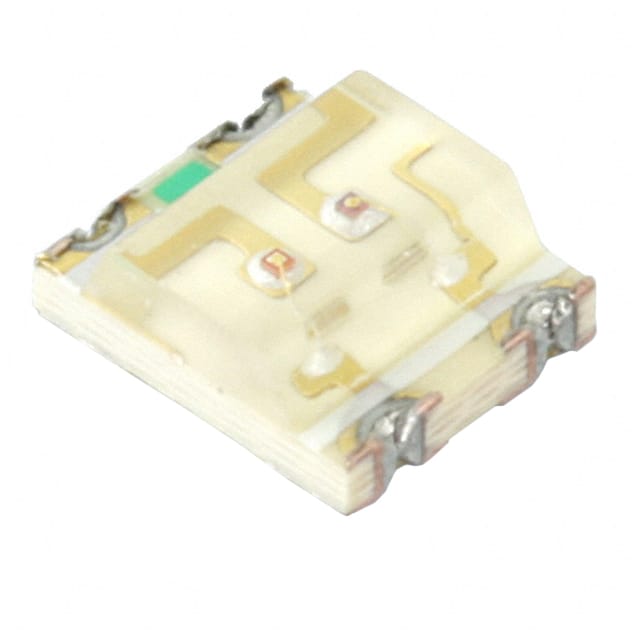

APBL3025SURKCGK-F01 The Kingbright APBL3025SURKCGK-F01 is a dual-color SMD LED offering both Green and Hyper Red light. It features a 3.0mm x 2.5mm package and a wide 50° viewing angle.
Mfr Part #:

APBL3025SURKCGK-F01

Available from 2 distributors
Mfr Name: Kingbright
Kingbright
The Kingbright APBL3025SURKCGK-F01 is a dual-color SMD LED offering both Green and Hyper Red light. It features a 3.0mm x 2.5mm package and a wide 50° viewing angle.
✓ Total Stock: 370 pcs
$ Price Range: $0.40

APBL3025SURKCGK-F01 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tomark Electronics Ltd ✓
Non-Authorised Inventory information
290 pcs
On Request
290 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
80 pcs
$0.40 ℹ
Qty Price
0+ 0.40
80 pcs $0.40
QtyPrice
0+ 0.40
1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

APBL3025SURKCGK-F01 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Configuration
Current
Emitting Color
Height
Height (Max)
Lens Color
Lens Size
Lens Style
Lens Transparency
Lens Type
Millicandela Rating
Mounting Type
Supplier Device Package
Tape & Reel
Viewing Angle
Voltage
Wavelength
View Similar Products (0)

APBL3025SURKCGK-F01 Description

Short technical summary and product information.

The Kingbright APBL3025SURKCGK-F01 is a surface-mount (SMD) light-emitting diode (LED) designed for indication and backlighting applications. This discrete LED component offers dual-color functionality, emitting both Green and Hyper Red light from a single package. It is constructed using AlGaInP on a GaAs substrate.



The LED has a compact footprint measuring 3.0mm in length and 2.5mm in width, with a maximum height of 1.40mm. It features a water-clear lens and a flat-top rectangle lens style. The typical luminous intensity is rated at 150mcd for Green and 300mcd for Hyper Red, both at a forward current of 20mA. The dominant wavelength for Green is 574nm, and for Hyper Red is 645nm. The viewing angle is a wide 50°.



This component is ideal for status indicators, home and smart appliances, and wearable devices. It comes in a 4-SMD, No Lead package and is supplied on tape and reel with 2000 pieces per reel. The device is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.

APBL3025SURKCGK-F01 Quick Information

Product Type: LED
Canonical Name: Kingbright APBL3025SURKCGK-F01 Dual Color SMD LED
Subcategory: Discrete

APBL3025SURKCGK-F01 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

APBL3025SURKCGK-F01 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

APBL3025SURKCGK-F01 Features

  • Dual color Green and Hyper Red emitters.
  • Compact 3.0mm x 2.5mm SMD package.
  • Wide 50 degree viewing angle.
  • Typical 150mcd Green, 300mcd Red intensity.
  • RoHS3 compliant and MSL 1 rated.

APBL3025SURKCGK-F01 Applications

  • Ideal for status indicators.
  • Suitable for home appliances.
  • Used in smart appliances.
  • Applicable for portable devices.
  • Designed for healthcare applications.

APBL3025SURKCGK-F01 FAQs

7 frequently asked questions generated from this part’s specifications.
What colors does the Kingbright APBL3025SURKCGK-F01 LED emit?

This LED emits both Green and Hyper Red light.

What is the typical forward voltage for the Green and Red emitters?

The typical forward voltage is 2.1V for Green and 1.95V for Red.

What are the dominant wavelengths for the Green and Red light?

The dominant wavelength is 574nm for Green and 645nm for Red.

What is the typical luminous intensity for this LED?

The typical luminous intensity is 150mcd for Green and 300mcd for Red.

What is the viewing angle of the APBL3025SURKCGK-F01 LED?

The viewing angle is 50 degrees.

What are the dimensions of the LED package?

The package dimensions are 3.00mm in length and 2.50mm in width, with a maximum height of 1.40mm.

How is this LED packaged?

It is a 4-SMD, No Lead package supplied on tape and reel with 2000 pieces per reel.
