| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
22 pcs
|
22 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Current | |
| Coil Type | |
| Coil Voltage | |
| Contact Form | |
| Contact Material | |
| Contact Rating (Current) | |
| Lead Style | |
| Mounting Type | |
| Must Operate Voltage | |
| Must Release Voltage | |
| Operate Time | |
| Operating Temperature | |
| Relay Type | |
| Release Time | |
| Seal Rating | |
| Switching Voltage | |
| Termination Style |

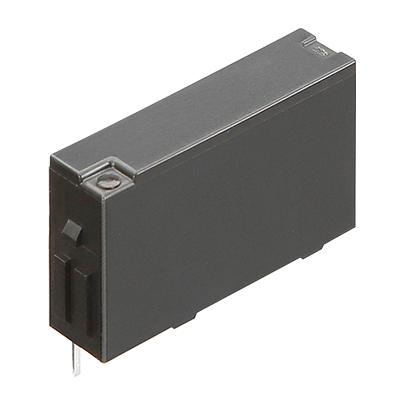

The Panasonic Electronic Components APAN3106 is a general purpose relay designed for reliable performance in various applications. It features a SPST-NO (1 Form A) contact configuration, capable of handling up to 5A of current and switching voltages up to 250VAC or 110VDC.
The relay operates on a 6VDC coil voltage with a coil current of 18.3 mA. It has a typical operate time of 10 ms and a release time of 5 ms. The operating temperature range is from -40°C to 90°C, and it is fully sealed for protection.
Designed for through-hole mounting with PC pin termination, the APAN3106 is suitable for integration into various electronic circuits. Its contact material is Silver Nickel (AgNi) with Gold (Au) plating, ensuring good conductivity and durability.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The coil voltage for the APAN3106 relay is 6 VDC.
The APAN3106 relay has a contact current rating of 5 A.
The APAN3106 relay has a SPST-NO (1 Form A) contact form.
The operating temperature range for the APAN3106 relay is -40°C to 90°C.
The APAN3106 relay is designed for through-hole mounting.
