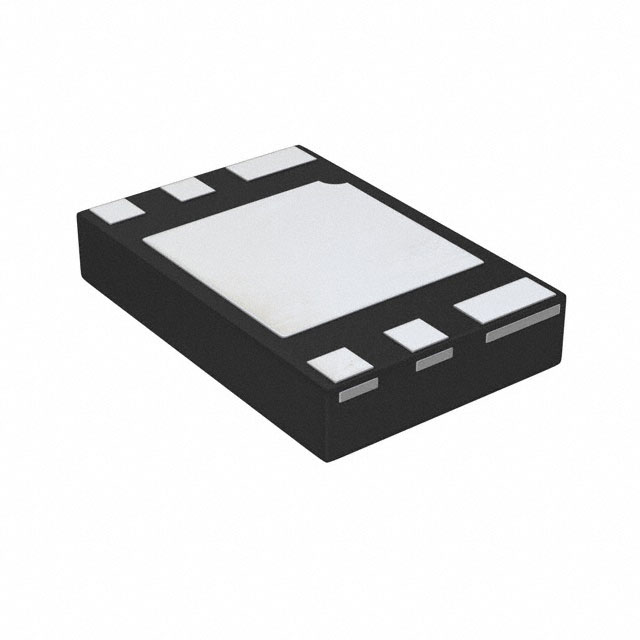

The AP9211S-AE-HAC-7 from Diodes Incorporated is a highly integrated solution designed for the protection of 1-cell Lithium-ion battery packs. This device combines a battery protection chip with dual n-channel MOSFETs, providing essential safety features such as overcharge voltage/current, overdischarge voltage/current, and load short circuit detection.
Key electrical specifications include a wide operating voltage range up to 30V (VDD to VM) and very low quiescent current, with typical values of 3.0µA in normal mode and 0.1µA in power-down mode. The device boasts high-accuracy voltage detection circuits for overcharge (3.5V to 4.5V) and overdischarge (2.0V to 3.4V) conditions, along with precise detection for overcurrent and short circuits.
Designed for surface mount applications, the AP9211S-AE-HAC-7 is housed in a U-DFN2030-6 (Type C) package. It operates within a temperature range of -40°C to 85°C (TA) and supports selectable power-down mode and 0V battery charge permission.
This component is suitable for various Li+ rechargeable battery pack applications where reliable protection and minimal power consumption are critical. Its integrated nature simplifies design and reduces the need for external components.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to 85°C (TA).
This device supports Lithium Ion battery chemistry.
The AP9211S-AE-HAC-7 is designed to protect 1 cell.
It includes Over Current and Over Voltage fault protection.
The package is a 6-UDFN Exposed Pad, specifically U-DFN2030-6 (Type C).
The RoHS status is ROHS3 Compliant.
The MSL is 1 Unlimited.
