| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,473 pcs
|
2473 pcs | On Request | 1 | On Request | On Request | 1819+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Control Features | |
| Current | |
| Halogen Free | |
| Lead Style | |
| Mounting Type | |
| Number of Regulators | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| PSRR | |
| Protection Features | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage | |
| Voltage Dropout (Max) |
The Diodes Incorporated AP7361C-12Y5-13 is a 1A, fixed output voltage, ultra-low dropout linear regulator. It is designed for low-to-medium power applications, including laptop computers, audio and video devices, and battery-powered equipment.
Key electrical characteristics include a fixed 1.2V output voltage with ±1% accuracy, a typical dropout voltage of 360mV at 1A (for a 3.3V output, though this part is 1.2V fixed), and a low typical quiescent current of 60µA. The device operates over a wide input voltage range of 2.2V to 6.0V and features current limit and thermal shutdown protection circuitry.

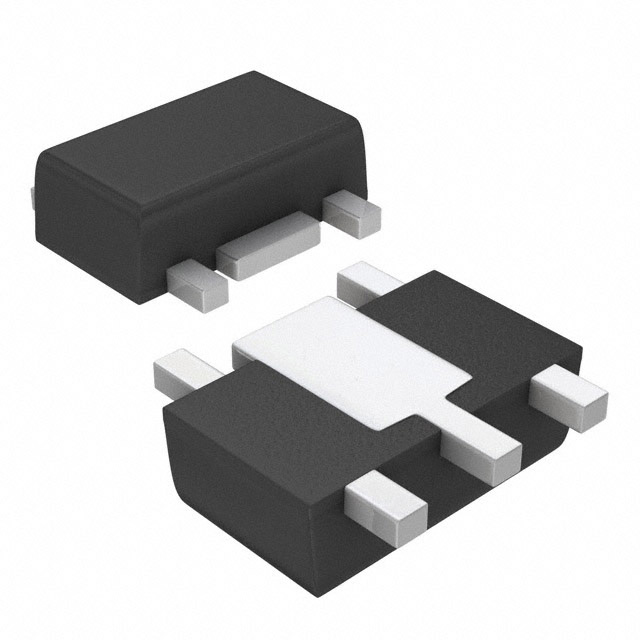

This regulator is available in a SOT-89-5 package, suitable for surface mount applications. It is designed to be stable with various capacitor types, including MLCC, E-Cap, Tan-Cap, or Solid Capacitors of 2.2µF or greater. The operating temperature range is -40°C to +85°C.
The AP7361C series offers adjustable and fixed output voltage options. This specific part, AP7361C-12Y5-13, provides a fixed 1.2V output. It also includes an enable pin for power control.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is fixed at 1.2V with ±1% accuracy.
The input voltage range is 2.2V to 6.0V.
The typical dropout voltage is 360mV at 1A load, with a maximum of 0.7V at 1A.
The typical quiescent current is 60µA.
The operating temperature range is -40°C to 85°C.
The device is available in a surface-mount SOT-89-5 package.
Yes, it has a current limit of 1.5A and fold-back short-circuit protection that reduces current to 400mA under fault conditions.
