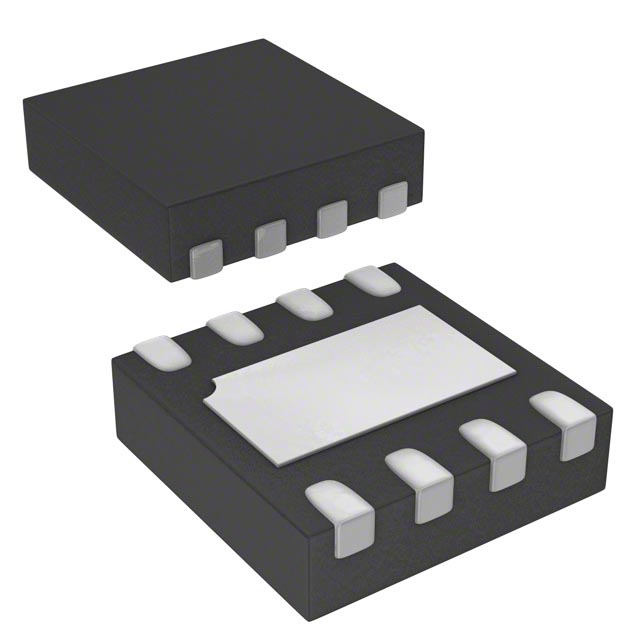

The AP7361-FGE-7 from Diodes Incorporated is a 1A, adjustable output voltage, ultra-low dropout linear regulator with an enable function. It operates within a wide input voltage range of 2.2V to 6V and offers an adjustable output voltage from 1V to 5V. The device is designed for low to medium power applications, including laptop computers, audio/video devices, and battery-powered equipment.
Key electrical characteristics include a very low dropout voltage of 150mV at 300mA and 500mV at 1A. The typical quiescent current is approximately 70µA, contributing to power efficiency. Built-in current-limit and thermal-shutdown circuitry protect the IC from damage under fault conditions. The regulator is stable with a ceramic output capacitor of 2.2µF or greater.
This component is housed in an 8-UDFN Exposed Pad package, suitable for surface mounting. It operates across an ambient temperature range of -40°C to +85°C. The device includes an enable pin for control and offers features like fast transient response and high PSRR.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.17 | $0.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 2.2V to 6V.
The output voltage can be adjusted from 1V to 5V.
The maximum output current is 1A.
The dropout voltage is 500mV at a 1A load.
The typical quiescent current is 70µA.
The operating temperature range is -40°C to 85°C.
It is supplied in an 8-UDFN exposed pad package.
