| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,645 pcs
|
5645 pcs | On Request | 1 | On Request | On Request | 1517+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Input Voltage | |
| Lead Style | |
| Mounting Type | |
| Number of Regulators | |
| Operating Temperature | |
| Output Voltage | |
| PSRR | |
| Quiescent Current | |
| Storage Temperature |

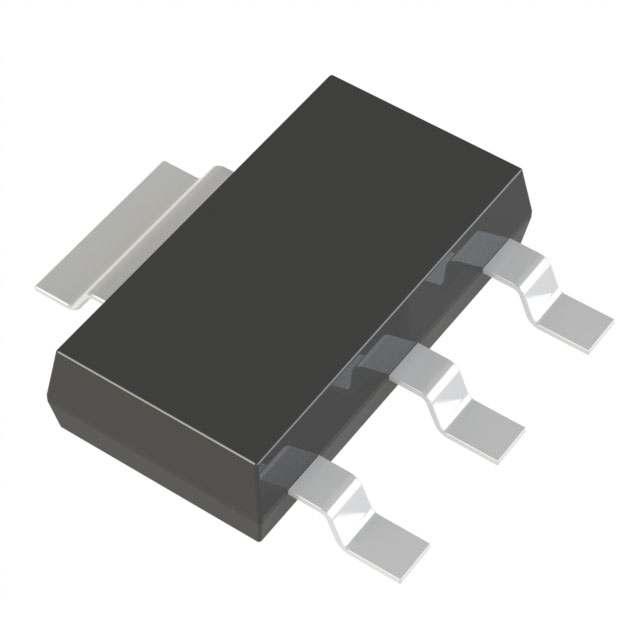

The Diodes Incorporated AP7361-10E-13 is a positive linear voltage regulator designed for power management applications. It features a fixed output voltage of 1V and can supply up to 1A of current. The device operates with an input voltage range up to 6V and has a typical voltage dropout of 0.7V at 1A.
This regulator is housed in a SOT-223 package, suitable for surface mount technology (SMT). It operates within a temperature range of -40°C to 85°C. Key electrical characteristics include a low quiescent current of 90 µA and a Power Supply Rejection Ratio (PSRR) ranging from 45dB to 65dB across the 1kHz to 10kHz frequency range.
Protection features include over-current, over-temperature, and short-circuit protection, enhancing its reliability in various applications. The AP7361-10E-13 is a single-regulator device, simplifying circuit design.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AP7361-10E-13 has a fixed output voltage of 1V.
The AP7361-10E-13 can provide a maximum output current of 1A.
The maximum input voltage for the AP7361-10E-13 is 6V.
The AP7361-10E-13 operates in a temperature range of -40°C to 85°C.
The AP7361-10E-13 is supplied in a SOT-223 package, suitable for surface mounting.
