| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | 1047+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Control Features | |
| Length | |
| Mounting Style | |
| Mounting Type | |
| Number of Outputs | |
| Number of Regulators | |
| Operating Temperature | |
| PSRR | |
| Protection Features | |
| SVHC Present | |
| Supplier Device Package | |
| Supplier Package | |
| Width |

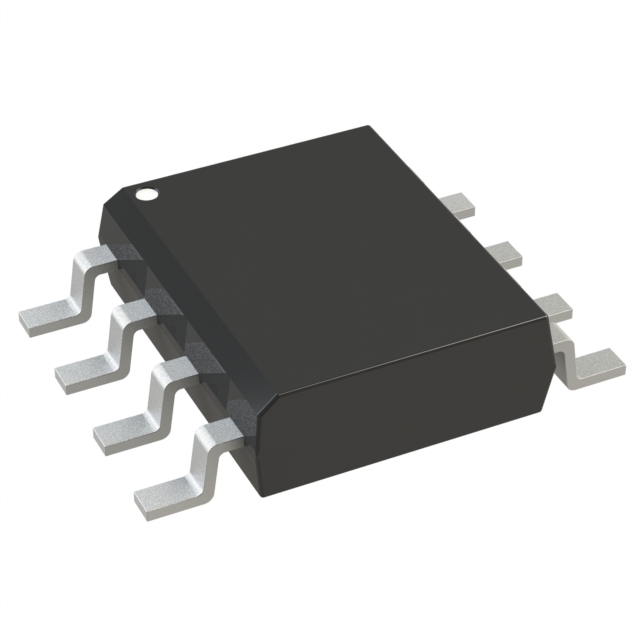

The AP7215-33SG-13 from Diodes Incorporated is a linear voltage regulator designed for power management applications. It delivers a stable 3.3V output voltage and can supply a maximum current of 600mA.
Key electrical specifications include a minimum input voltage of 3.3V and a maximum of 5.5V. The device exhibits a typical dropout voltage of 60mV at 30mA and 100mV at 30mA, with a maximum of 0.25V at 100mA. Quiescent current is typically 80µA, with a maximum of 0.08mA.
This regulator is housed in an 8-SOP package suitable for surface mounting. It operates within a temperature range of -40°C to 85°C and includes protection features such as current limit, short circuit protection, and shutdown.
Its design makes it suitable for various applications requiring a reliable and efficient voltage regulation solution. The surface-mount package facilitates integration into compact electronic designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is fixed at 3.3V.
The maximum output current is 600mA.
The input voltage range is 3.3V to 5.5V.
The dropout voltage is 60mV typical, and 100mV maximum at 30mA load.
The quiescent current is 80µA typical.
The operating temperature range is -40°C to +85°C.
The device is available in an 8-SOIC package (3.9mm width, 0.154" body).
