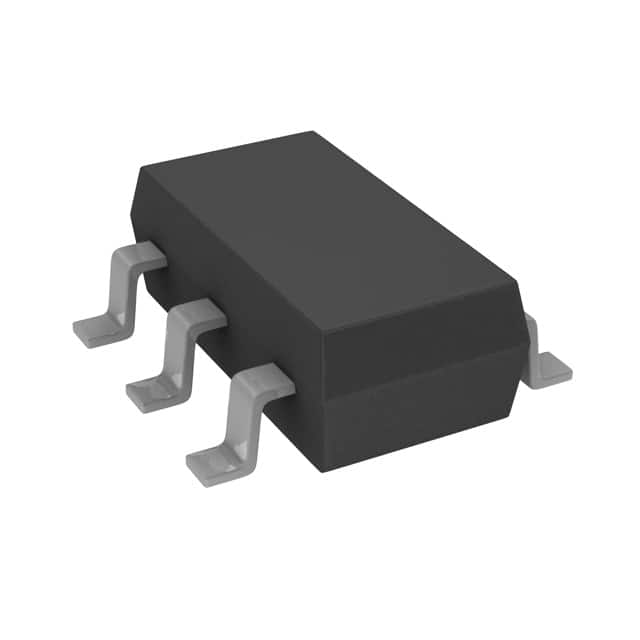

AP65201WU-7 The Diodes Incorporated AP65201WU-7 is a positive adjustable buck switching regulator IC. It features a 2A output current and operates within a 4.5V to 16V input voltage range.
Mfr Part #:

AP65201WU-7

Available from 1 distributors
Mfr Name: Diodes Incorporated
Diodes Incorporated
The Diodes Incorporated AP65201WU-7 is a positive adjustable buck switching regulator IC. It features a 2A output current and operates within a 4.5V to 16V input voltage range.
✓ Total Stock: 1,616 pcs
$ Price Range: $0.16

AP65201WU-7 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
1,616 pcs
On Request
1616 pcs On Request 1 On Request On Request 16+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AP65201WU-7 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Frequency
Function
Mounting Type
Number of Outputs
Operating Temperature
Output Configuration
Output Type
Supplier Device Package
Synchronous Rectifier
Topology
Voltage
View Similar Products (0)

AP65201WU-7 Description

Short technical summary and product information.

The AP65201WU-7 from Diodes Incorporated is a DC-DC switching regulator designed for step-down (buck) conversion. This IC offers an adjustable positive output voltage and can deliver up to 2A of current.



Key electrical specifications include an input voltage range of 4.5V to 16V, with an adjustable output voltage from 0.8V up to 14.72V. The switching frequency is 500kHz, and it incorporates a synchronous rectifier for improved efficiency. The device operates within an ambient temperature range of -40°C to 85°C.



Packaged in a compact SOT-23-6 Thin, TSOT-23-6 (TSOT-26) surface-mount case, the AP65201WU-7 is suitable for space-constrained applications. Its function as a step-down regulator makes it a versatile component for various power management needs.

AP65201WU-7 Quick Information

Product Type: DC DC Switching Regulator
Canonical Name: Diodes Incorporated AP65201WU-7 Buck Switching Regulator IC
Subcategory: DC DC Switching Regulators

AP65201WU-7 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

AP65201WU-7 Estimated Pricing

Qty Low High
1+ $0.16 $0.16

Estimated market price range - modelled values for guidance only, not live distributor offers.

AP65201WU-7 Features

  • Positive adjustable buck switching regulator.
  • 2A maximum output current.
  • Wide 4.5V to 16V input voltage range.
  • 500kHz switching frequency.
  • Compact TSOT-26 surface-mount package.

AP65201WU-7 Applications

  • Power supply circuits.
  • Battery-powered devices.
  • Portable electronics.
  • Point-of-load power.
  • General power regulation.

AP65201WU-7 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output current capability of the AP65201WU-7?

The AP65201WU-7 has an output current capability of 2A.

What is the input voltage range for the AP65201WU-7?

The input voltage range for the AP65201WU-7 is from 4.5V to 16V.

What is the adjustable output voltage range?

The output voltage is adjustable from 0.8V to 14.72V.

What is the switching frequency of this regulator?

The switching frequency is 500kHz.

What is the operating temperature range?

The operating temperature range is -40°C to 85°C (TA).

What package type is the AP65201WU-7 available in?

It is available in a SOT-23-6 Thin, TSOT-23-6 package, also referred to as TSOT-26.

Does the AP65201WU-7 have a synchronous rectifier?

Yes, it features a synchronous rectifier.
