The AP63356QZV-7 from Diodes Incorporated is an automotive-compliant synchronous buck converter designed for step-down DC-DC conversion. It operates with an input voltage range from 3.8V to 32V and can deliver a continuous output current of 3.5A. The device integrates high-side and low-side power MOSFETs, minimizing external component count.
This converter utilizes peak current mode control and an integrated loop compensation network for ease of use. It is optimized for Electromagnetic Interference (EMI) reduction through a proprietary gate driver scheme and Frequency Spread Spectrum (FSS) technology. The switching frequency is set at 450kHz.

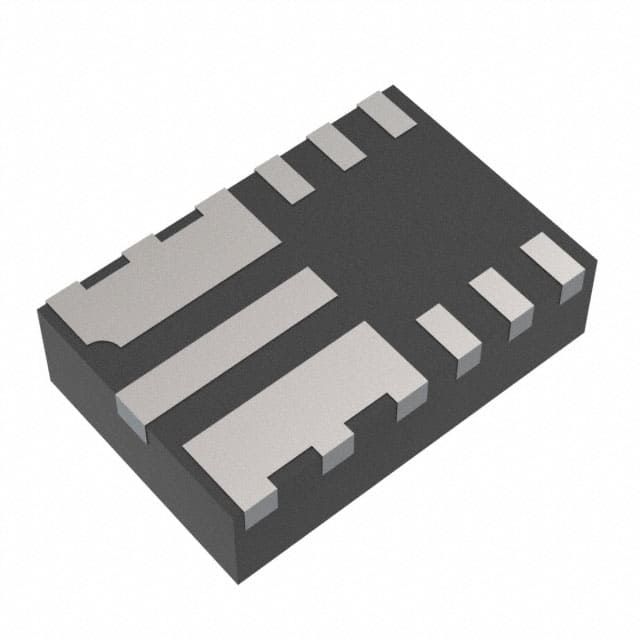

The AP63356QZV-7 is AEC-Q100 qualified, suitable for automotive applications. It is available in a compact 3mm x 2mm V-DFN3020-13/SWP (Type A1) package with wettable flanks, designed for surface mounting.
Key features include a low quiescent current of 22µA, an adjustable output voltage starting from 0.8V, and high efficiency. Protection circuitry includes undervoltage lockout (UVLO), output undervoltage protection (UVP), cycle-by-cycle peak current limit, and thermal shutdown.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.16 | $0.16 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 3.8V to 32V.
The output voltage is adjustable from 0.8V to 31V.
The continuous output current is 3.5A.
The switching frequency is 450kHz.
The operating temperature range is -40°C to +125°C.
It comes in a 13-lead PowerVFDFN package (V-DFN3020-13 Type A) for surface mount.
Yes, it is AEC-Q100 qualified to Grade 1.
