The AP63301WU-7 from Diodes Incorporated is a 3A synchronous buck converter designed for efficient step-down DC-DC conversion. It operates with an input voltage range of 3.8V to 32V and provides an adjustable output voltage from 0.8V to 31V.
This device integrates high-efficiency power MOSFETs and utilizes peak current mode control with an integrated loop compensation network, minimizing external component count. It is optimized for Electromagnetic Interference (EMI) reduction through a proprietary gate driver scheme. The AP63301WU-7 operates at a 500kHz switching frequency and offers up to 88% efficiency at light loads.

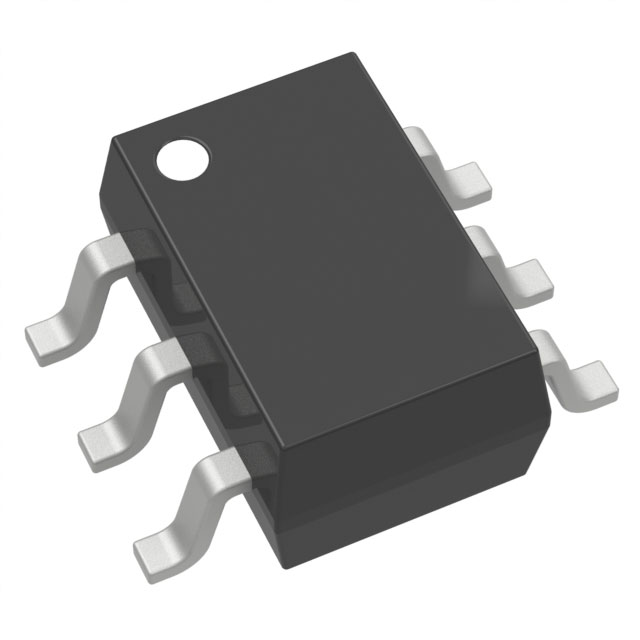

Available in a compact TSOT-26 package, the AP63301WU-7 is suitable for surface mount applications. Its features include Undervoltage Lockout (UVLO), Output Overvoltage Protection (OVP), Cycle-by-Cycle Peak Current Limit, and Thermal Shutdown for robust operation.
Key applications include distributed power bus supplies (5V, 12V, 24V), flat-screen TV sets, power tools, printers, small home appliances, FPGA/DSP/ASIC supplies, and general-purpose point-of-load applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.16 | $0.16 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 3.8V to 32V.
The maximum continuous output current is 3A.
The output voltage can be adjusted from 0.8V to 31V.
The switching frequency is 500kHz.
The operating temperature range is -40°C to 85°C.
The AP63301WU-7 is supplied in a TSOT-26 package.
