| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,407 pcs
|
1407 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Frequency | |
| Function | |
| Halogen Free | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| Quiescent Current | |
| Supplier Device Package | |
| Supplier Package | |
| Synchronous Rectifier | |
| Tape & Reel | |
| Topology | |
| Voltage |
The AP62600SJ-7 is a high-efficiency synchronous DC-DC buck converter from Diodes Incorporated, designed to deliver up to 6A of continuous output current. It operates from an input voltage range of 4.5V to 18V and provides an adjustable output voltage from 0.6V to 7V, making it suitable for a wide variety of point-of-load and distributed power architectures.
The device integrates a 36mΩ high-side MOSFET and a 14mΩ low-side MOSFET to achieve high conversion efficiency. The switching frequency is selectable among 400kHz, 800kHz, and 1.2MHz, allowing designers to optimize between efficiency and component size. The quiescent current is 360μA, supporting light-load efficiency.

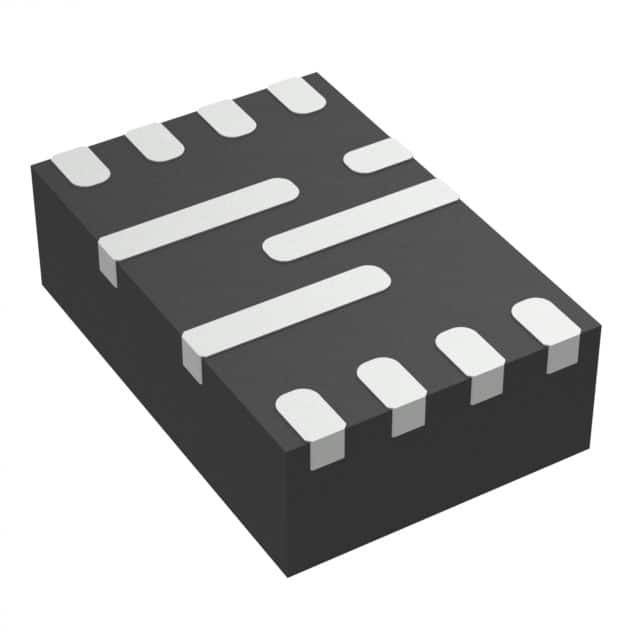

The AP62600SJ-7 is offered in a compact V-QFN2030-12 (Type A) surface-mount package, which is also described as a 12-VFQFN. It is specified for an operating temperature range of -40°C to +85°C. The device is totally lead-free, halogen and antimony free, and is RoHS3 compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.16 | $0.16 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 4.5V to 18V.
The output voltage is adjustable from 0.6V to 7V.
The maximum continuous output current is 6A.
The switching frequency is selectable among 400kHz, 800kHz, and 1.2MHz.
The operating temperature range is -40°C to +85°C.
The AP62600SJ-7 is offered in a V-QFN2030-12 (Type A) surface-mount package, also described as a 12-VFQFN.
