| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,696 pcs
|
1696 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Efficiency | |
| Frequency | |
| Function | |
| Halogen Free | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Current | |
| Output Type | |
| Output Voltage | |
| Quiescent Current | |
| Supplier Device Package | |
| Synchronous Rectifier | |
| Tape & Reel | |
| Topology | |
| Voltage |

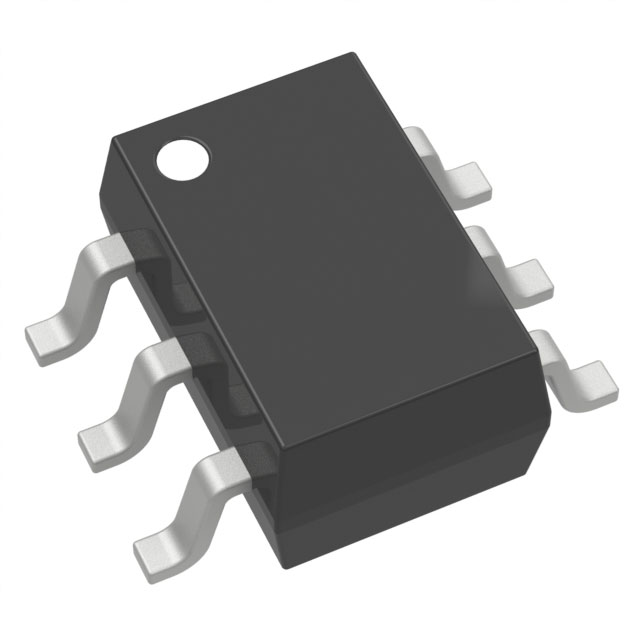

The AP62300WU-7 from Diodes Incorporated is a 3A synchronous buck converter with a wide input voltage range of 4.2V to 18V. It integrates high-side and low-side power MOSFETs to provide efficient step-down DC-DC conversion.
This device utilizes Constant On-Time (COT) control for fast transient response and easy loop stabilization, minimizing external component count. It is optimized for Electromagnetic Interference (EMI) reduction through a proprietary gate driver scheme that resists switching node ringing.
The AP62300WU-7 offers an adjustable output voltage from 0.8V to 7V and operates at a typical switching frequency of 750kHz. It includes protection circuitry such as Undervoltage Lockout (UVLO), Cycle-by-Cycle Valley Current Limit, Output Undervoltage Protection, and Thermal Shutdown.
Available in a TSOT-26 package, this surface-mount device is suitable for various applications including distributed power bus supplies, consumer electronics, and point-of-load power. It is designed for high efficiency, even at light loads.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.16 | $0.16 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4.2V to 18V.
3A.
750kHz typical.
-40°C to 85°C.
SOT-23-6 Thin, TSOT-23-6 (TSOT-26).
Yes, it is totally lead-free.
Yes, it is halogen and antimony free.
