Mfr Part #:

AP522304

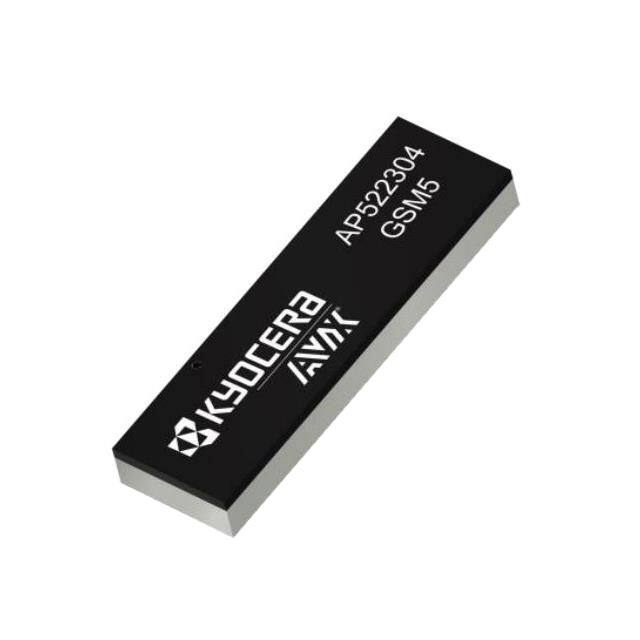

Name: AP522304
Brand: Kyocera AVX
SKU: AP522304

Mfr Name: Kyocera AVX

Description:

AUTOMOTIVE BROADBAND FR4 EMBEDDE

Stock on Request

AP522304 Description

Short technical summary and product information.

AUTOMOTIVE BROADBAND FR4 EMBEDDE

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	RF Antennas
Manufacturer Name	Kyocera AVX
Antenna Type	Chip
Applications	ISM, LoRaWAN, LPWA, LTE, NB-IoT, Sigfox, Wi-Fi
Frequency (Center	892MHz, 1.94GHz
Frequency Group	Wide Band
Frequency Range	824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz
Gain	0dBi, 0.7dBi
Height (Max)	0.130" (3.30mm)
Mounting Type	Surface Mount
Number of Bands	2
Power	2 W
RF Family	Cellular, General ISM, WiFi
Termination	Solder
VSWR	2.5, 2.7
