| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
40,000 pcs
|
40000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Fault Protection | |
| Frequency | |
| Internal Switch(s) | |
| Mounting Type | |
| Operating Temperature | |
| Output Isolation | |
| Power (Watts) | |
| Supplier Device Package | |
| Topology | |
| Voltage |

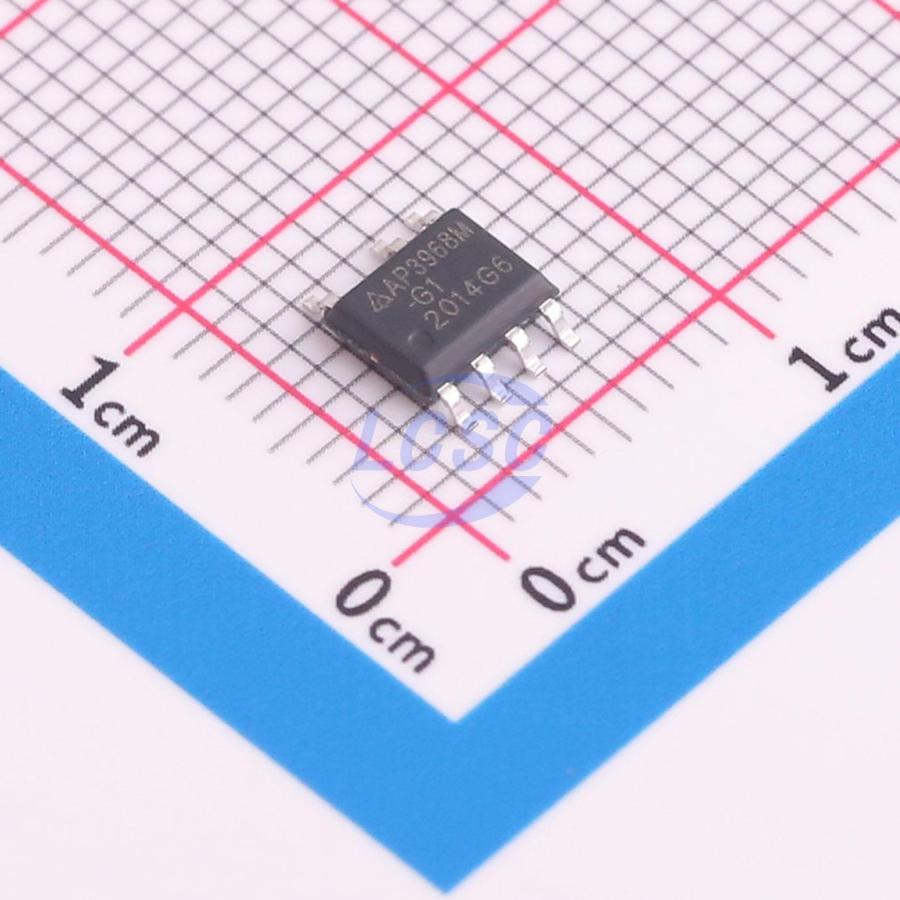

The Diodes Incorporated AP3968MTR-G1 is an integrated circuit designed for AC to DC conversion, specifically functioning as an offline switch. It operates within a voltage range of 5.3V to 22V and delivers up to 5W of power at a frequency of 60kHz.
This component features internal switching capabilities and provides isolated output. It includes fault protection for over temperature and short circuits, enhancing its reliability in various applications. The device operates within a temperature range of -40°C to 85°C.
Packaged in an 8-SOIC format with 7 leads, and identified by the supplier package code 7-SO, this part is designed for surface mount installation. Its topology is Flyback, making it suitable for power supply designs requiring isolation.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 5.3V to 22V.
The switching frequency is 60kHz.
The output power is 5W.
The operating temperature range is -40°C to 85°C.
The AP3968MTR-G1 is available in a 7-SO or 8-SOIC surface mount package.
The AP3968MTR-G1 uses a flyback topology.
It includes over temperature and short circuit protection.
