AP3595FNTR-G1 The AP3595FNTR-G1 is a Buck controller from Diodes Incorporated. It operates with an input voltage range of 10.8 V to 13.2 V and features a switching frequency up to 1 MHz.
Mfr Part #:

AP3595FNTR-G1

Available from 1 distributors
Mfr Name: BCD
BCD
The AP3595FNTR-G1 is a Buck controller from Diodes Incorporated. It operates with an input voltage range of 10.8 V to 13.2 V and features a switching frequency up to 1 MHz.
✓ Total Stock: 9,563 pcs
$ Price Range: $2.13

AP3595FNTR-G1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
9,563 pcs
On Request
9563 pcs On Request 1 On Request On Request 13+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AP3595FNTR-G1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Clock Sync
Control Features
Duty Cycle (Max)
Function
Input Voltage
Mounting Type
Number of Outputs
Operating Temperature
Output Configuration
Output Phases
Synchronous Rectifier
Topology
View Similar Products (0)

AP3595FNTR-G1 Description

Short technical summary and product information.

The AP3595FNTR-G1 is a DC-DC switching controller manufactured by Diodes Incorporated. This component is designed for step-down (buck) conversion applications.



Key electrical specifications include an input voltage range of 10.8V to 13.2V and a switching frequency that can be adjusted from 50kHz up to 1MHz. It supports two output phases and features control functions such as Enable, Frequency Control, Phase Control, and Soft Start. The maximum duty cycle is rated at 40%.

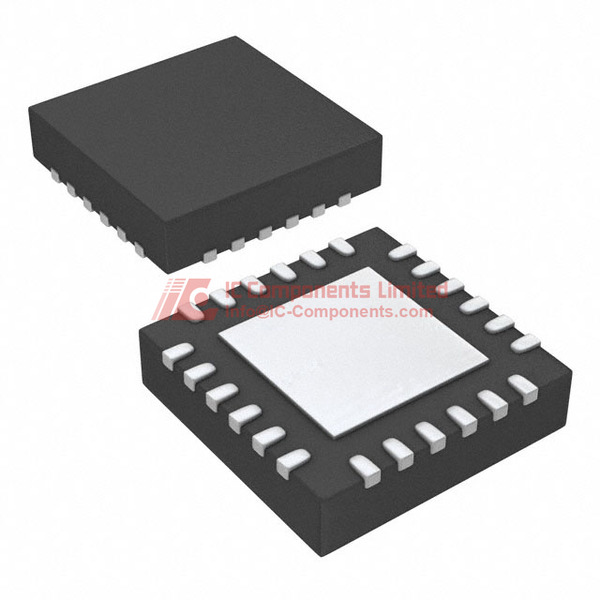

This device is suitable for surface mount installation and comes in a U-QFN4040-24 package. The operating temperature range is -40°C to 85°C (TA). The controller is designed with two outputs and a positive output configuration.



Compliance information indicates RoHS3 compliance and an MSL rating of 1 (Unlimited).

AP3595FNTR-G1 Quick Information

Product Type: Buck Controller
Canonical Name: AP3595FNTR-G1 Buck Controller
Subcategory: Voltage Regulators

AP3595FNTR-G1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

AP3595FNTR-G1 Estimated Pricing

Qty Low High
1+ $2.13 $2.13

Estimated market price range - modelled values for guidance only, not live distributor offers.

AP3595FNTR-G1 Features

  • Buck controller for step-down conversion.
  • Input voltage range 10.8V to 13.2V.
  • Switching frequency up to 1 MHz.
  • Supports two output phases.
  • Surface mountable in U-QFN4040-24 package.

AP3595FNTR-G1 Applications

  • Suitable for step-down power regulation circuits.
  • Used in portable electronic devices requiring voltage conversion.
  • Ideal for synchronous buck converters in power supplies.
  • Applicable in battery-powered systems with wide input voltage.
  • Suitable for surface-mount power management applications.

AP3595FNTR-G1 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the input voltage range for the AP3595FNTR-G1?

The input voltage range is 10.8 V to 13.2 V.

What is the switching frequency of the AP3595FNTR-G1?

The switching frequency can be set between 50 kHz and 1 MHz.

What type of package is the AP3595FNTR-G1 in?

The AP3595FNTR-G1 is available in a U-QFN4040-24 package.

How is the AP3595FNTR-G1 mounted?

It is designed for surface mount installation.

What is the operating temperature range for this component?

The operating temperature range is -40°C to 85°C (TA).
