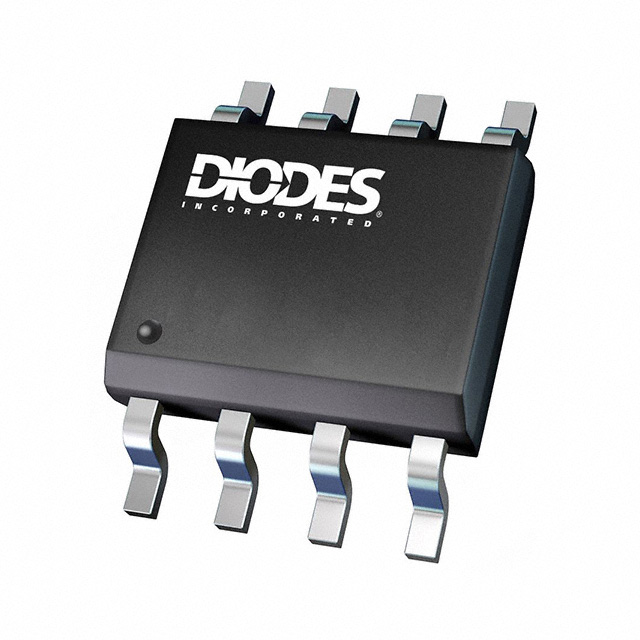

The AP3513EMPTR-G1 from Diodes Incorporated is a 500kHz fixed frequency, current mode, PWM synchronous buck (step-down) DC-DC converter. It is capable of driving a 3A load with high efficiency and excellent line and load regulation, exhibiting high efficiency even at light loads.
This converter integrates N-channel power MOSFET switches with low on-resistance. Current mode control ensures fast transient response and cycle-by-cycle current limit. The device includes comprehensive protection features such as output Over Voltage Protection, input Under Voltage Lock Out, programmable Soft-Start, Over Temperature Protection, and hiccup mode Short Circuit Protection, ensuring system security.
The AP3513EMPTR-G1 is supplied in an 8-SO-EP package, suitable for surface mount applications. Its input voltage range is 4.5V to 18V, making it versatile for various power management needs in applications like monitors, TVs, and datacom equipment.
This component is designed for efficiency and reliability, featuring built-in over-current, thermal shutdown, and UVLO protection. It is also noted as being totally lead-free and fully RoHS 3 compliant, as well as halogen and antimony-free.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.16 | $0.16 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 4.5V to 18V.
The maximum output current is 3A.
The switching frequency is fixed at 500kHz.
It is supplied in an 8-SO-EP package.
The operating temperature range is -40°C to 85°C.
Yes, it is a synchronous buck converter.
It includes output Over Voltage Protection, input Under Voltage Lock Out, Over Temperature Protection, and hiccup mode Short Circuit Protection.
