AP3429AKTTR-G1
Diodes Incorporated

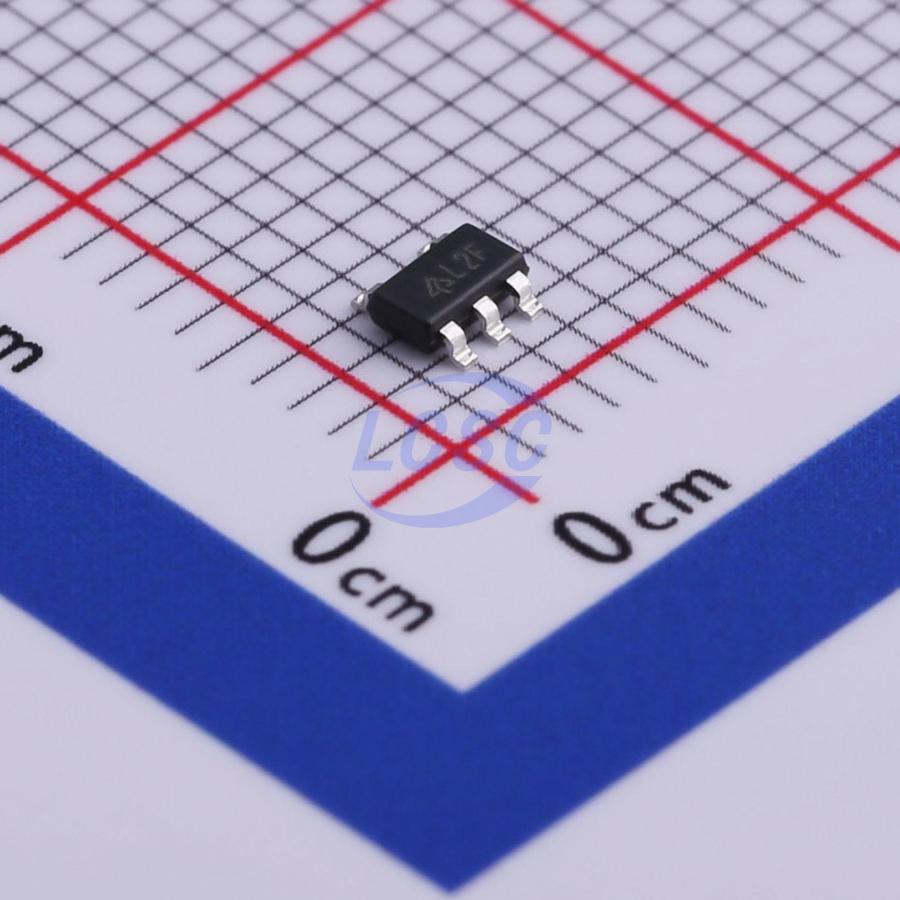

The Diodes Incorporated AP3429AKTTR-G1 is a 2A step-down DC-DC buck converter. It features an adjustable output voltage and operates with an input voltage range of 2.7V to 5.5V.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,968 pcs
|
2968 pcs | On Request | 1 | On Request | On Request | 23+ | On Request | On Request | |
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Frequency | |
| Function | |
| Halogen Free | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| Output Voltage | |
| Supplier Device Package | |
| Synchronous Rectifier | |
| Topology | |
| Voltage |
The AP3429/A is a 2A step-down DC-DC buck converter from Diodes Incorporated. It supports an input voltage range of 2.7V to 5.5V, making it suitable for single Li+/Li-polymer cells or multiple Alkaline/NiMH cells. The output voltage is adjustable from 0.6V up to the input voltage.
This converter utilizes internal power switches and a synchronous rectifier to achieve high efficiency and minimize external component count. It operates at a constant frequency of 1MHz, providing excellent stability and transient response without requiring external compensation components. Key features include over-temperature protection, short circuit protection (Latch Off or Hiccup Mode depending on variant), and under-voltage lockout.
The AP3429/A is available in a compact TSOT25 package, ideal for space-constrained applications. Its low quiescent current of 90μA and shutdown current of less than 1μA contribute to power efficiency. Applications include point-of-load conversion for 5V or 3.3V systems, telecom/networking equipment, set-top boxes, storage equipment, video cards, and DDR power supplies.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.19 | $0.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 2.7V to 5.5V.
The output current is 2A.
The output voltage is adjustable from 0.6V to VIN.
It is available in a TSOT-25 surface-mount package.
The operating temperature range is -40°C to 85°C (TA).
Yes, it is totally lead-free.
Yes, it is halogen and antimony free.
