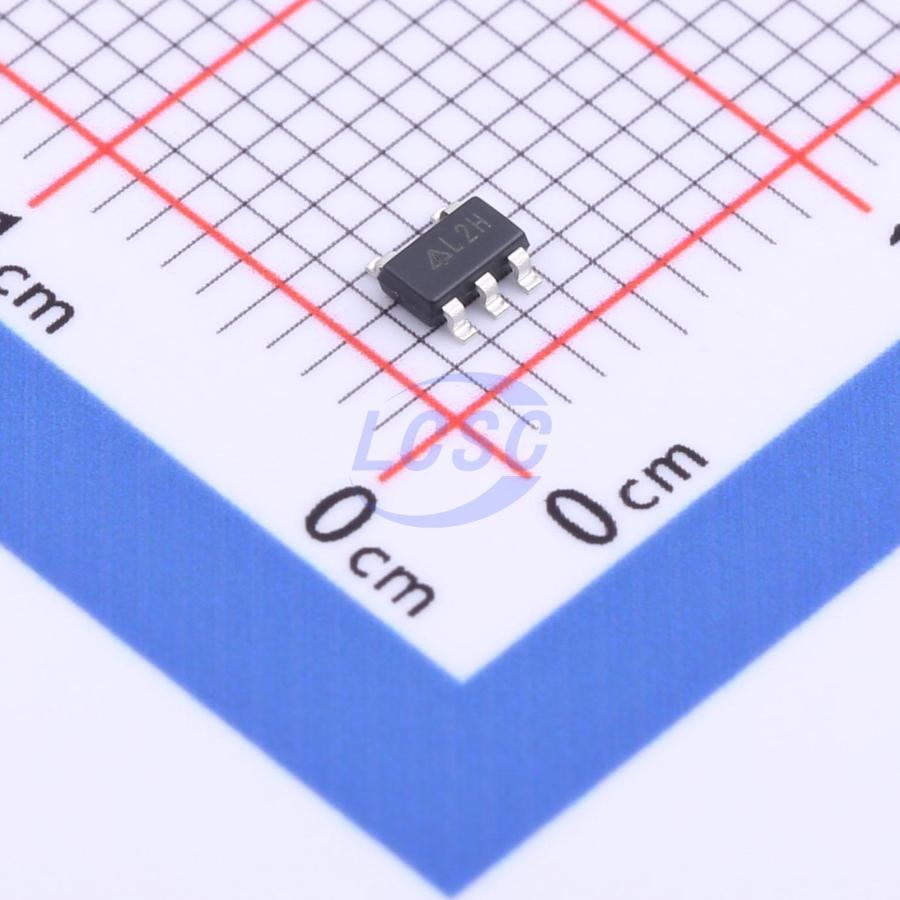

The AP3428KTTR-G1 from Diodes Incorporated is a 1A step-down DC-DC buck converter designed for efficient power regulation. It supports a wide input voltage range from 2.5V to 5.5V, making it suitable for various power sources including single Li-polymer cells or multiple alkaline/NiMH cells.
The converter offers an adjustable output voltage, ranging from 0.6V up to the input voltage. It operates at a constant switching frequency of 1.5MHz, utilizing internal power switches and a synchronous rectifier to minimize external component count and achieve high efficiency. The device includes features such as over-temperature protection, short circuit protection, and under-voltage lockout to ensure system reliability and protect the battery from deep discharge.
With a low no-load quiescent current of 40µA (typical) and a shutdown current of less than 1µA, the AP3428KTTR-G1 is ideal for power-sensitive applications. It is available in a compact TSOT-25 package, suitable for surface mount assembly.
Key electrical characteristics include a 1A maximum output current, a 0.6V reference voltage with ±2% precision, and 100% duty cycle operation. The constant-frequency PWM control ensures excellent stability and transient response, with no external compensation components required. Pulse skip mode is employed to maintain high efficiency under light-load conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.07 | $0.07 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AP3428KTTR-G1 provides up to 1A of output current.
The input voltage range for this device is 2.5V to 5.5V.
The output voltage is adjustable from 0.6V to the input voltage.
The switching frequency is 1.5MHz.
The operating temperature range is -40°C to 80°C (TA).
It is supplied in a TSOT-25 package.
Yes, it is RoHS3 Compliant.
