| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50,092 pcs
|
50092 pcs | On Request | 1 | On Request | On Request | 17+ | On Request | On Request | |
|
1,696 pcs
|
1696 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Frequency | |
| Function | |
| Halogen Free | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Current | |
| Output Type | |
| Output Voltage | |
| Supplier Device Package | |
| Supplier Package | |
| Synchronous Rectifier | |
| Topology | |
| Voltage |

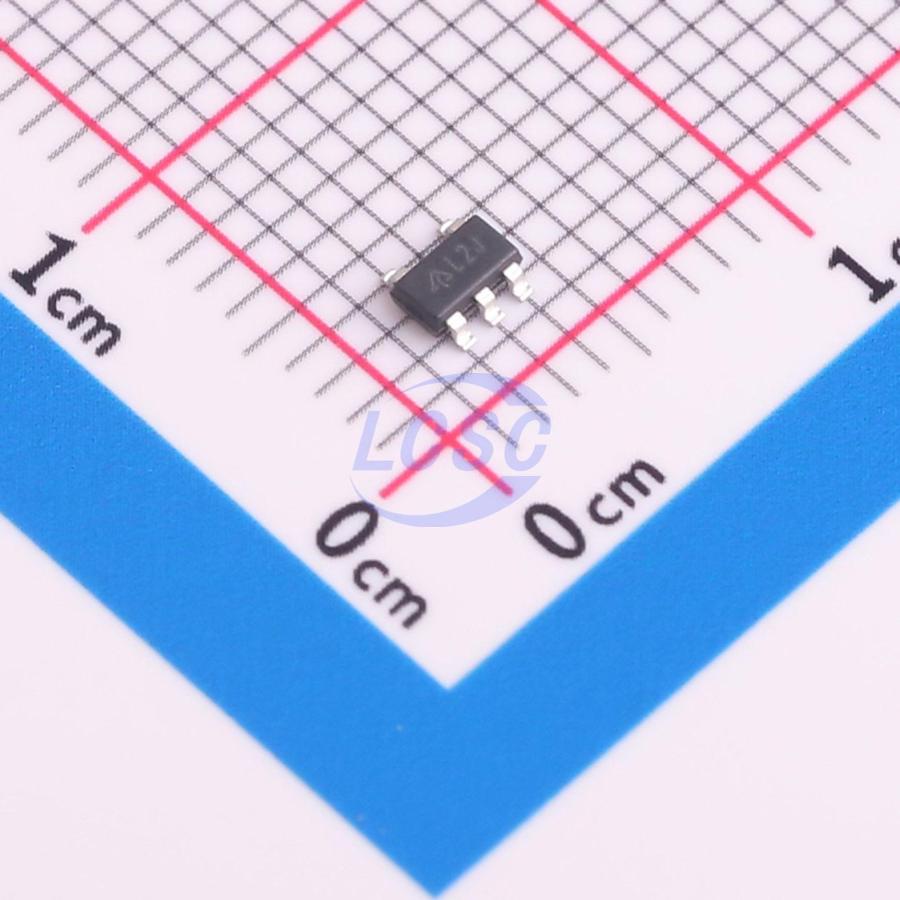

The AP3428AKTTR-G1 from Diodes Incorporated is a 1A step-down DC-DC buck converter designed for efficient power regulation. It supports a wide input voltage range from 2.5V to 5.5V, making it suitable for various power sources including single Li-polymer cells or multiple alkaline/NiMH cells.
The converter offers an adjustable output voltage, ranging from 0.6V up to the input voltage. It operates at a constant switching frequency of 1.5MHz, ensuring excellent stability and transient response without requiring external compensation components. Key features include internal power switches and synchronous rectification for high efficiency, low quiescent current (40µA typical), and shutdown current less than 1µA.
Integrated protection features such as over-temperature and short-circuit protection, along with under-voltage lockout, help prevent deep battery discharge and ensure reliable operation. The AP3428AKTTR-G1 is available in a compact TSOT-25 package, suitable for surface mount applications.
This device is ideal for post DC-DC voltage regulation in applications like set-top boxes, notebook computers, and PADs. It is designed for high output voltage and high current applications requiring a low dropout threshold, with pulse skip mode for maintaining light-load efficiency.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.14 | $0.14 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AP3428AKTTR-G1 provides up to 1A of output current.
The input voltage range for this device is 2.5V to 5.5V.
The output voltage is adjustable from 0.6V to the input voltage (VIN).
The switching frequency is 1.5MHz.
The AP3428AKTTR-G1 is available in a TSOT-25 package.
The operating temperature range is -40°C to 80°C (TA).
Yes, the AP3428AKTTR-G1 is RoHS3 Compliant.
