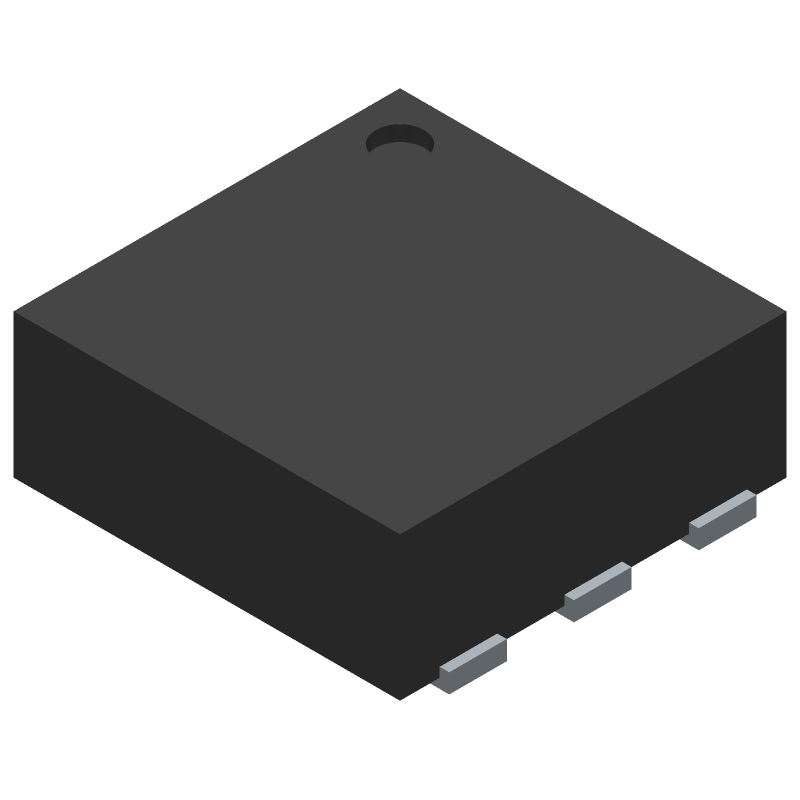

The AP3417CDNTR-G1 from Diodes Incorporated is a synchronous step-down DC-DC voltage converter optimized by peak-current mode architecture. It features built-in synchronous power MOSFET switchers and an internal oscillator, providing a constant switching frequency of 1.5MHz. This allows for the use of small surface mount inductors and capacitors, making it suitable for portable product implementations.
This device supports a wide input voltage range from 2.5V to 5.5V and is capable of delivering up to 1A of output current. The output voltage is adjustable, ranging from 0.6V to 0.9 times the input voltage. Key integrated features include Soft Start (SS), Under Voltage Lock Out (UVLO), Thermal Shutdown Detection (TSD), and Short Circuit Protection, ensuring reliable operation.
The AP3417CDNTR-G1 is available in a compact W-DFN2020-6 (Type US) package, suitable for surface mount applications. Its design incorporates features like low RDS(ON) internal switches and low dropout operation at 100% duty cycle, eliminating the need for an external Schottky diode. It also includes input and output over-voltage protection, and over-current protection.
Applications for this converter include post DC-DC voltage regulation in devices such as PDAs and notebook computers. The device operates within an industrial temperature range of -40°C to 85°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.16 | $0.16 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is from 2.5V to 5.5V.
The device can deliver up to 1A of output current.
The converter operates at a constant frequency of 1.5MHz.
The operating temperature range is -40°C to 85°C.
It is supplied in a W-DFN2020-6 (Type US) package.
Yes, it is RoHS3 Compliant.
