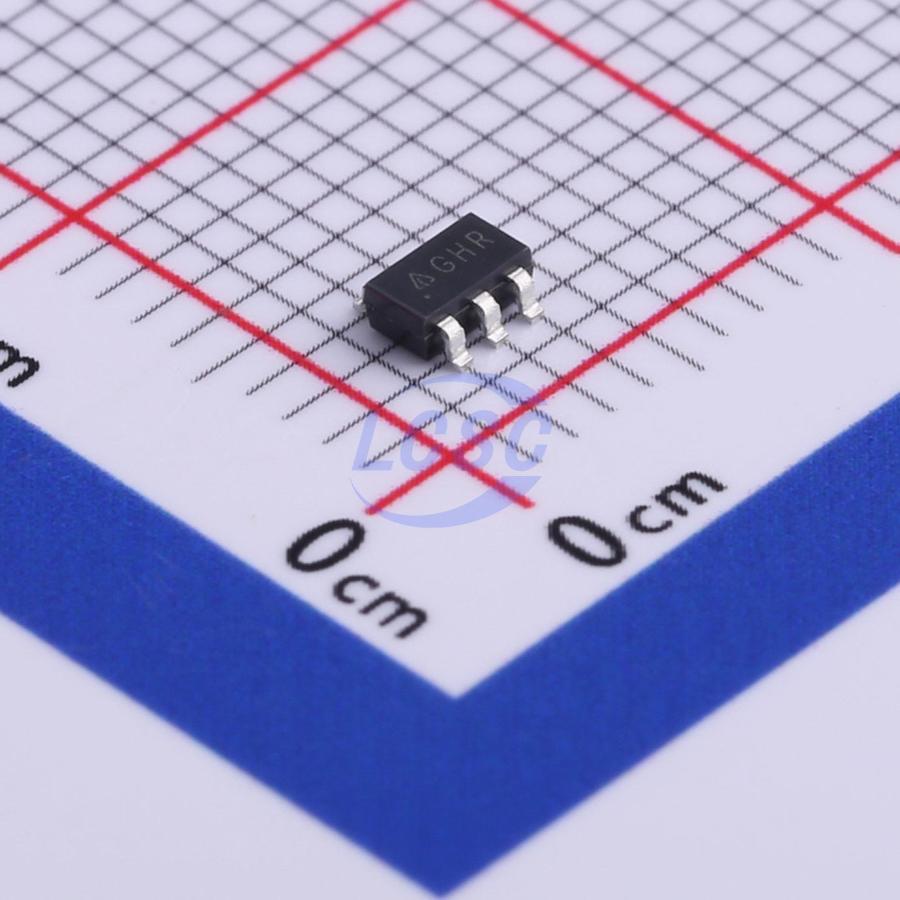

AP3036BKTR-G1 The Diodes Incorporated AP3036BKTR-G1 is a White LED Step-Up Converter designed for backlight applications. It features a 1.0MHz switching frequency and a SOT-23-6 package.
Mfr Part #:

AP3036BKTR-G1

Available from 1 distributors
Mfr Name: Diodes Incorporated
Diodes Incorporated
The Diodes Incorporated AP3036BKTR-G1 is a White LED Step-Up Converter designed for backlight applications. It features a 1.0MHz switching frequency and a SOT-23-6 package.
✓ Total Stock: 2,500 pcs
$ Price Range: $0.11

AP3036BKTR-G1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
2,500 pcs
On Request
2500 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AP3036BKTR-G1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Current
Dimming
Frequency
Halogen Free
Internal Switch(s)
Mounting Type
Number of Outputs
Operating Temperature
Supplier Device Package
Supplier Package
Topology
Type
Voltage
View Similar Products (0)

AP3036BKTR-G1 Description

Short technical summary and product information.

The AP3036B is an inductor-based DC/DC converter from Diodes Incorporated, designed to drive up to eight white LEDs in series for backlight applications. It employs a constant frequency 1.0MHz PWM control scheme, allowing for the use of tiny external components such as a 1mm tall inductor and a 0.22 µF output capacitor. The integrated Schottky diode simplifies the boost circuit.



Key features include inherently uniform LED current, high efficiency up to 84%, and output overvoltage protection. The device operates with a 2.5V input voltage and provides a 550mA output current. It supports PWM dimming for brightness control and is available in a compact SOT26 package, suitable for surface mount applications.



This converter is designed for applications such as cellular phones, digital cameras, LCD modules, GPS receivers, and PDAs. It is RoHS3 compliant, Halogen and Antimony free, and suitable for various electronic systems requiring efficient LED driving.

AP3036BKTR-G1 Quick Information

Product Type: LED Driver
Series: AP3036B
Canonical Name: AP3036B White LED Step-Up Converter
Subcategory: DC DC Regulator

AP3036BKTR-G1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Totally Lead-Free

AP3036BKTR-G1 Estimated Pricing

Qty Low High
1+ $0.11 $0.11

Estimated market price range - modelled values for guidance only, not live distributor offers.

AP3036BKTR-G1 Features

  • Drives up to eight white LEDs in series.
  • Integrated Schottky diode in boost circuit.
  • Constant frequency 1.0MHz PWM control.
  • Requires only 0.22µF output capacitor.
  • Output overvoltage protection (OVP).

AP3036BKTR-G1 Applications

  • Suitable for cellular phone backlights.
  • Used in digital camera displays.
  • Ideal for LCD module illumination.
  • Applicable for GPS receiver displays.
  • Designed for PDA handheld computers.

AP3036BKTR-G1 FAQs

7 frequently asked questions generated from this part’s specifications.
What type of DC/DC converter is the AP3036BKTR-G1?

The AP3036BKTR-G1 is a Step-Up (Boost) DC/DC regulator.

What is the switching frequency of the AP3036BKTR-G1?

The AP3036BKTR-G1 has a fixed switching frequency of 1MHz.

What is the output current capability of the AP3036BKTR-G1?

The AP3036BKTR-G1 has an output current capability of 550mA (Switch).

What is the operating temperature range for the AP3036BKTR-G1?

The operating temperature range for the AP3036BKTR-G1 is -40°C to 85°C (TA).

What package type is the AP3036BKTR-G1 supplied in?

The AP3036BKTR-G1 is supplied in a SOT-23-6 package.

Is the AP3036BKTR-G1 RoHS compliant?

The AP3036BKTR-G1 is RoHS3 Compliant.

Does the AP3036BKTR-G1 have output overvoltage protection?

Yes, the AP3036BKTR-G1 features output overvoltage protection (OVP).
