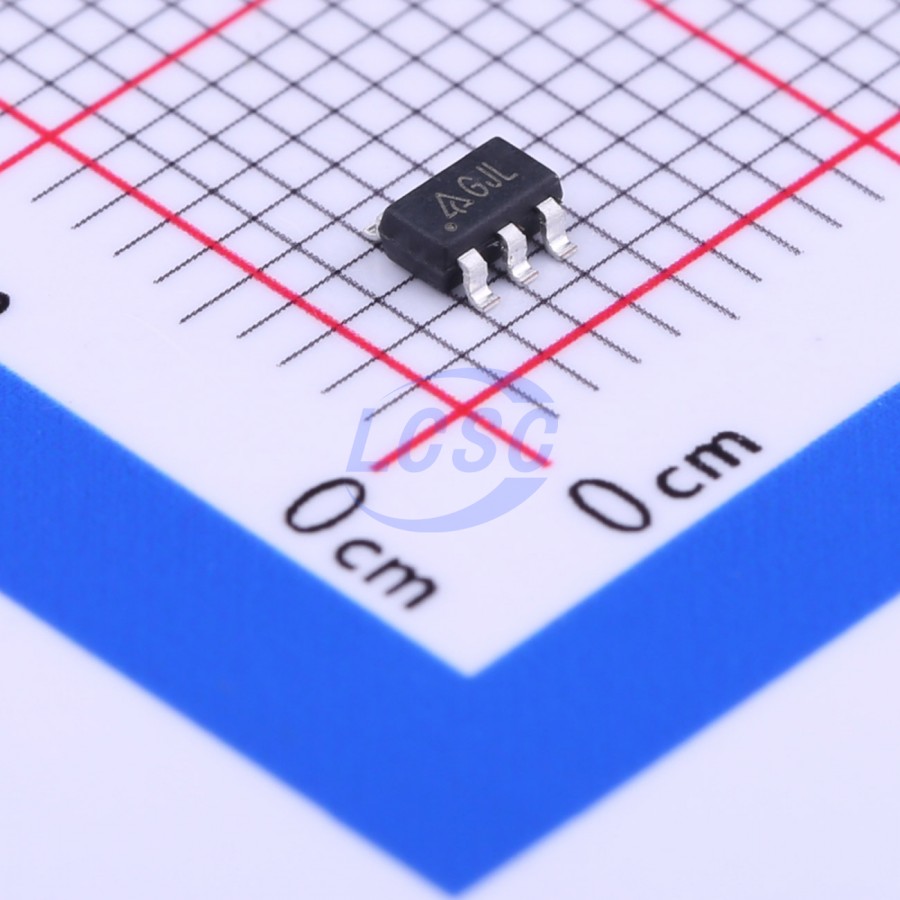

The AP3032KTR-G1 from Diodes Incorporated is an inductor-based DC/DC boost converter specifically designed for driving LED backlights in applications such as 7' to 10' LCD panels, digital photo frames, and GPS receivers.
This IC utilizes a constant frequency 1MHz PWM control scheme, enabling the use of small external components like a 6.8μH inductor and a 1µF output capacitor. It supports a wide input voltage range from 2.7V to 9V and can drive up to 4 rows of WLEDs, each with 7 series LEDs in parallel. The device offers an efficiency of up to 81% at 5V input and 80mA output.
Key features include output over-voltage protection, cycle-by-cycle current limiting at 1.4A, built-in soft-start, standby mode for high-frequency PWM dimming, thermal shutdown, and under-voltage lockout. The AP3032KTR-G1 is available in a compact SOT-23-6 package, suitable for surface mount applications.
Its low feedback voltage of 200mV contributes to efficient operation. The CTRL pin allows for enabling/disabling the IC or implementing dimming control via PWM input. The OV pin provides over-voltage protection by clamping the output voltage.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.13 | $0.13 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2.7V to 9V.
1 MHz.
1.4A cycle-by-cycle.
-40°C to 85°C.
SOT-23-6.
Yes, PWM dimming.
Up to 81% at 5V input and 80mA load.
