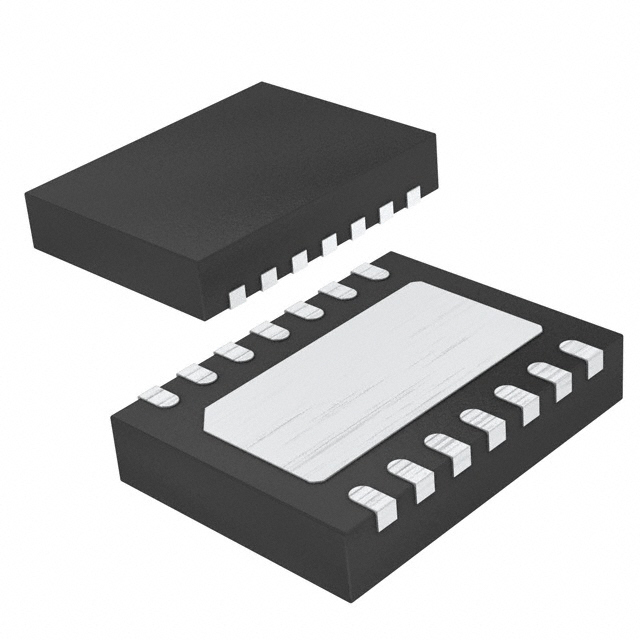

The AP22966DC8-7 from Diodes Incorporated is an integrated dual N-channel load switch. It features independent control for each channel and an adjustable slew rate capability. The device operates over an input voltage range of 0.8V to 5.5V, with a low typical on-resistance of 18mΩ, enabling a current handling capability of up to 6A per channel.
Designed for battery-powered systems where power consumption is critical, the AP22966DC8-7 offers very low quiescent current. It supports low-voltage logic signals for control and includes an internal quick output discharge (QOD) feature. The switch is available in a compact V-DFN3020-14 package with an exposed pad for enhanced thermal performance.
Key features include dual channel operation, adjustable slew rate per channel, and low quiescent current. The V-DFN3020-14 package offers a small footprint of just 6mm². This load switch is suitable for applications such as ultrabooks, notebooks, SSDs, and consumer electronics.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range for the AP22966DC8-7 is 0.8V to 5.5V.
The maximum continuous current per channel for the AP22966DC8-7 is 6A.
The typical on-resistance of the AP22966DC8-7 is 18mΩ when VBIAS = 5V.
The quiescent current for both channels of the AP22966DC8-7 is typically 60μA.
The operating temperature range of the AP22966DC8-7 is -40°C to 85°C.
The AP22966DC8-7 has 2 outputs.
The mounting type for the AP22966DC8-7 is Surface Mount.
