| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
376 pcs
|
376 pcs | On Request | 1 | On Request | On Request | 1736+ | On Request | On Request | |
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Fault Protection | |
| Features | |
| Halogen Free | |
| Input Type | |
| Input Voltage | |
| Interface | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| Quiescent Current | |
| Ratio | |
| Rds On (Typ) | |
| Supplier Device Package | |
| Switch Type | |
| Voltage |
The AP22800HB-7 from Diodes Incorporated is an integrated N-channel load switch ideal for power management applications. It features an input voltage range of 1.5V to 5.5V, making it suitable for various voltage rails including 1.8V, 2.5V, 3.3V, and 5V systems.
This load switch offers a low typical R DS(ON) of 19mΩ, enabling efficient current handling up to 4A. It also boasts a very low quiescent supply current of 21µA, which is beneficial for battery-powered devices where power consumption is critical. The device includes features like 'power good' output and adjustable start-up and discharge rates, settable via external components.

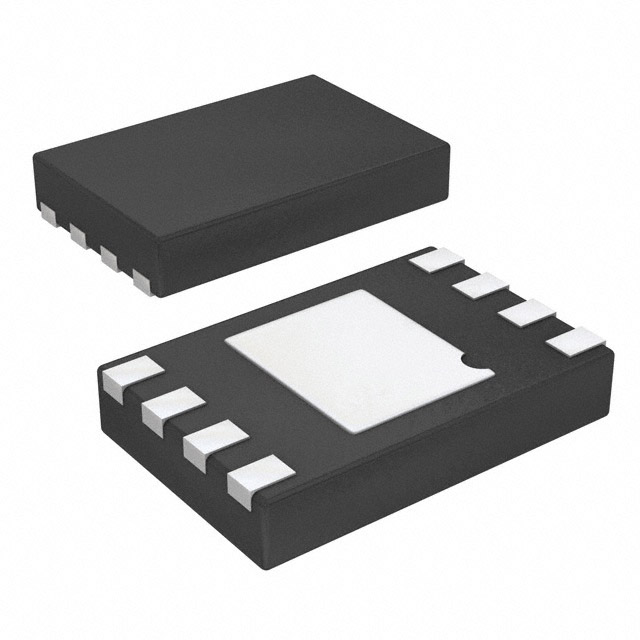

The AP22800HB-7 is housed in a compact U-DFN2116-8 package with an exposed pad for enhanced thermal performance. This small form factor package has a footprint of just 3.36mm², making it suitable for space-constrained designs. The component is RoHS compliant and considered a 'Green' device, being Halogen and Antimony free.
Applications for the AP22800HB-7 include integrated load switches in Ultrabook PCs, power up/down sequencing, tablets, SSDs, consumer electronics, and telecom systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 1.5V to 5.5V.
The AP22800HB-7 can handle a current of up to 4A.
The typical Rds(on) is 19mOhm.
The quiescent current is 21µA.
The operating temperature range is -40°C to 85°C (TA).
It is supplied in a U-DFN2116-8 package.
