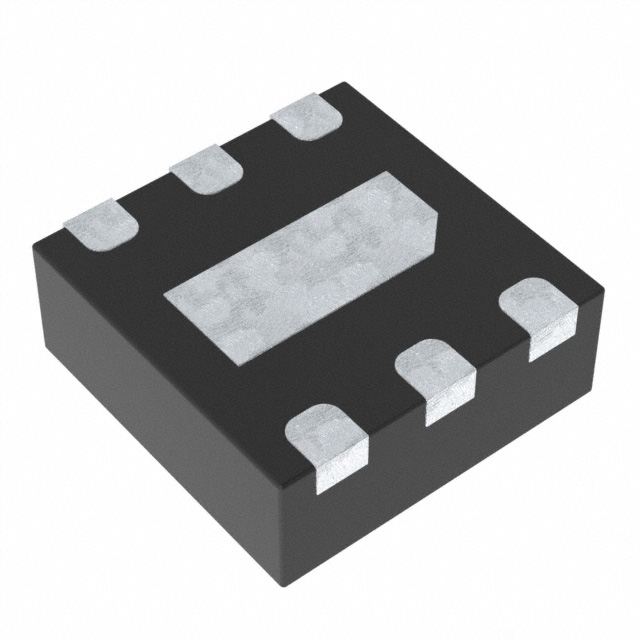

The Diodes Incorporated AP22653FDZ-7 is a single-channel, precision-adjustable, current-limited power switch designed for applications requiring precise current control and robust protection. It can provide up to 2.1A of continuous load current, making it suitable for handling heavy capacitive loads and short circuits.
The device features a programmable current-limit threshold between 125mA and 2665mA via an external resistor, with an accuracy of ±10% at high settings. It includes essential protection mechanisms such as overcurrent, overtemperature, short-circuit, and undervoltage lockout (UVLO). The AP22653FDZ-7 also offers reverse current blocking and limiting, along with a controlled rise time to minimize current surges during turn-on.
Packaged in a compact W-DFN2020-6 (Type A1) with an exposed pad, this surface-mount device operates over an ambient temperature range of -40°C to +85°C. Its features like a fault flag output with deglitch capability and fast short-circuit response time enhance system robustness. Applications include set-top boxes, LCD TVs & monitors, residential gateways, and various computing peripherals like laptops and printers.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AP22653FDZ-7 can handle up to 2.1A of maximum load current.
The current limit is programmable between 125mA and 2665mA typically, via an external resistor.
The typical Rds On is 65mOhm.
This device operates within a voltage range of 3.0V to 5.5V.
The operating temperature range is -40°C to +85°C.
It is available in a W-DFN2020-6 package, specifically a 6-WDFN Exposed Pad.
Yes, it features adjustable current limiting, over temperature, over voltage, reverse current, short circuit, and UVLO protection.
