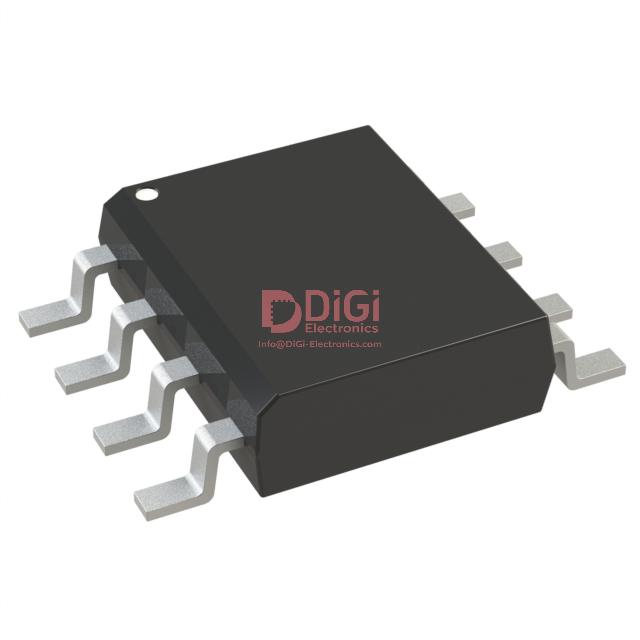

AP2171SG-13 The Diodes Incorporated AP2171SG-13 is a single-channel, current-limited power switch designed for USB and hot-swap applications. It features a P-channel output and active high enable.
Mfr Part #:

AP2171SG-13

Available from 3 distributors
Mfr Name: Diodes Incorporated
Diodes Incorporated
The Diodes Incorporated AP2171SG-13 is a single-channel, current-limited power switch designed for USB and hot-swap applications. It features a P-channel output and active high enable.
✓ Total Stock: 9,595 pcs
$ Price Range: $0.75

AP2171SG-13 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
4,235 pcs
On Request
4235 pcs On Request 1 On Request On Request 1316+ On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
4,215 pcs
On Request
4215 pcs On Request 1 On Request On Request 16+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,145 pcs
On Request
1145 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AP2171SG-13 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
ESD Protection
Fault Protection
Features
Halogen Free
Input Type
Interface
Mounting Type
Number of Outputs
Operating Temperature
Output Configuration
Output Current
Output Type
Ratio
Rds On (Typ)
Supplier Device Package
Supplier Package
Switch Type
Voltage
View Similar Products (0)

AP2171SG-13 Description

Short technical summary and product information.

The AP2171SG-13 from Diodes Incorporated is an integrated high-side power switch optimized for Universal Serial Bus (USB) and other hot-swap applications. This device offers accurate current limiting at 1.5A, thermal protection, and short-circuit protection.



Key electrical specifications include an input voltage range of 2.7V to 5.5V, a typical on-resistance of 95mΩ, and a maximum output current of 1A. It features an active-high enable input and a fault report (FLG) output with a 7ms typical blanking time to prevent false overcurrent reporting.



The AP2171SG-13 is available in an 8-SOP package, suitable for surface mounting. It operates within an ambient temperature range of -40°C to +85°C. The device is designed to comply with USB 2.0 standards and offers features like reverse current blocking and under-voltage lockout.



This power switch is well-suited for consumer electronics, communication devices, and computing applications requiring robust power management and protection.

AP2171SG-13 Quick Information

Product Type: Power Distribution Switch
Canonical Name: AP2171SG-13 Single Channel Current-Limited Power Switch
Subcategory: Load Driver

AP2171SG-13 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Totally Lead-Free

AP2171SG-13 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

AP2171SG-13 Features

  • Single channel USB power switch.
  • 1.5A accurate current limiting.
  • 95mΩ typical on-resistance.
  • 2.7V to 5.5V input voltage range.
  • Active high enable input.

AP2171SG-13 Applications

  • Ideal for USB port power.
  • Suitable for hot-swap applications.
  • Used in consumer electronics.
  • Applicable to communication devices.
  • Designed for computing systems.

AP2171SG-13 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range for the AP2171SG-13?

The input voltage range is 2.7V to 5.5V.

What is the typical on-resistance of the AP2171SG-13?

The typical on-resistance is 95mΩ.

What is the maximum output current for the AP2171SG-13?

The maximum output current is 1A.

What type of fault protection does the AP2171SG-13 offer?

It offers current limiting, over temperature, reverse current, and UVLO protection.

What is the operating temperature range for this power switch?

The operating temperature range is -40°C to +85°C.

What package type is the AP2171SG-13 available in?

It is available in an 8-SOP package.

Is the AP2171SG-13 RoHS compliant?

The RoHS status is RoHS3 Compliant.
