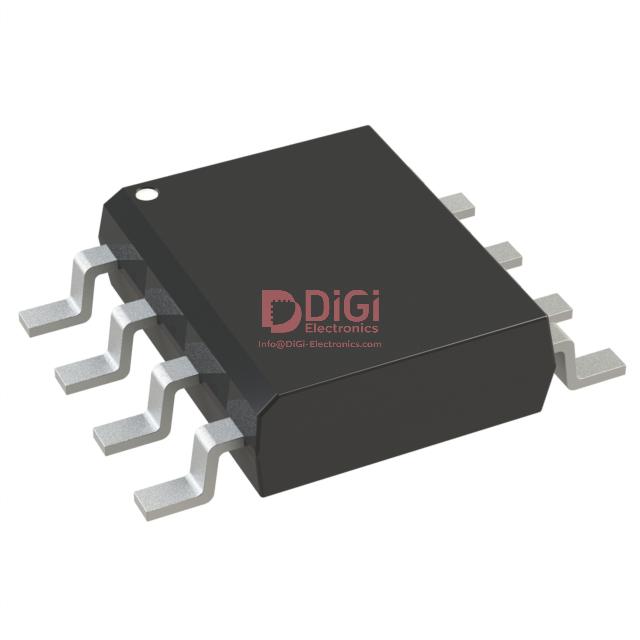

AP2152SG-13 The Diodes Incorporated AP2152SG-13 is a dual-channel, current-limited power switch optimized for USB applications. It features a P-channel output and operates over a 2.7V to 5.5V input range.
Mfr Part #:

AP2152SG-13

Available from 6 distributors
Mfr Name: Diodes Incorporated
Diodes Incorporated
The Diodes Incorporated AP2152SG-13 is a dual-channel, current-limited power switch optimized for USB applications. It features a P-channel output and operates over a 2.7V to 5.5V input range.
✓ Total Stock: 52,630 pcs
$ Price Range: $0.75

AP2152SG-13 Available from 6 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AP2152SG-13 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Fault Protection
Features
Halogen Free
Input Type
Input Voltage
Interface
Mounting Type
Number of Outputs
Operating Temperature
Output Configuration
Output Type
Ratio
Rds On (Typ)
Supplier Device Package
Switch Type
Voltage
View Similar Products (0)

AP2152SG-13 Description

Short technical summary and product information.

The AP2152SG-13 from Diodes Incorporated is an integrated high-side power switch designed for Universal Serial Bus (USB) and hot-swap applications. This dual-channel device offers precise current limiting at 0.8A typical and a maximum continuous output current of 500mA.



Key electrical features include an input voltage range of 2.7V to 5.5V, a low typical on-resistance of 120mOhm, and a controlled rise time of 0.6ms. It provides essential fault protection mechanisms such as current limiting, over-temperature protection, reverse current blocking, and undervoltage lockout (UVLO). The device also includes a 7ms typical blanking time on its open-drain Flag output to prevent false over-current reporting.



Packaged in an 8-SOP (SOIC) surface-mount package, the AP2152SG-13 is suitable for various consumer electronics, communication, and computing applications. Its active high enable input makes it easy to integrate into system designs requiring robust power management.



Environmental compliance includes RoHS3 compliance and Halogen-free status, making it suitable for lead-free manufacturing processes. The operating temperature range is -40°C to +85°C.

AP2152SG-13 Quick Information

Product Type: Power Distribution Switch
Canonical Name: AP2152SG-13 Dual Channel Current-Limited Power Switch
Subcategory: Load Driver

AP2152SG-13 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Totally Lead-Free

AP2152SG-13 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

AP2152SG-13 Features

  • Dual channel USB power switch.
  • 500mA maximum output current.
  • 2.7V to 5.5V input voltage range.
  • 120mOhm typical on-resistance.
  • Integrated fault protection features.

AP2152SG-13 Applications

  • Optimized for USB 2.0 applications.
  • Suitable for hot-swap circuitry.
  • Used in consumer electronics.
  • Applied in communication devices.
  • Found in computing systems.

AP2152SG-13 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range of the AP2152SG-13?

2.7V to 5.5V.

What package does the AP2152SG-13 come in?

8-SOP (8-SOIC, 0.154", 3.90mm width).

What is the operating temperature range?

-40°C to +85°C ambient.

What is the typical current limiting threshold?

0.8A.

What fault protections does the AP2152SG-13 include?

Current limiting (fixed), over-temperature, reverse current, and UVLO.

What is the ESD protection rating?

4.5kV HBM and 350V MM.

What is the shutdown current consumption?

1µA maximum.
