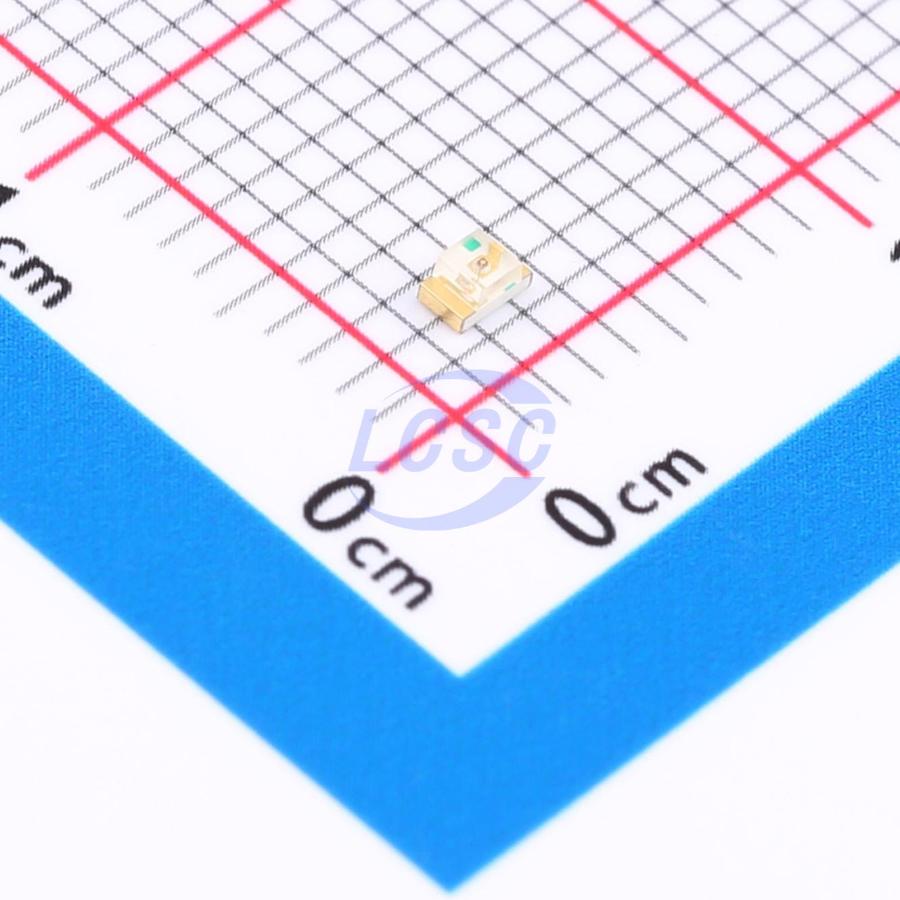

AP2012EC The Kingbright AP2012EC is a red, discrete SMD LED designed for indication purposes. It operates at a typical forward voltage of 2V and a current of 20mA.
Mfr Part #:

AP2012EC

Available from 5 distributors
Mfr Name: Kingbright
Kingbright
The Kingbright AP2012EC is a red, discrete SMD LED designed for indication purposes. It operates at a typical forward voltage of 2V and a current of 20mA.
✓ Total Stock: 2,928 pcs
$ Price Range: $0.06

AP2012EC Available from 5 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AP2012EC Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Configuration
Current
Height
Height (Max)
Lens Color
Lens Size
Lens Style
Lens Transparency
Millicandela Rating
Mounting Type
Supplier Device Package
Viewing Angle
Voltage
Wavelength
View Similar Products (0)

AP2012EC Description

Short technical summary and product information.

The Kingbright AP2012EC is a discrete surface-mount LED (SMD) designed for clear indication. This component features a vibrant red color with a colorless lens, providing a typical luminous intensity of 15mcd. It operates with a standard forward voltage of 2V and a forward current of 20mA, offering a wide viewing angle of 120°.



The LED is housed in an 0805 (2012 Metric) package, measuring 2.00mm in length and 1.25mm in width, with a maximum height of 1.10mm. Its surface mount design facilitates easy integration into printed circuit boards. The lens style is a rectangle with a flat top, and the lens transparency is clear.



This component is classified under RoHS3 compliance. Its typical wavelength is 627nm. The AP2012EC is suitable for various electronic indication applications where a compact, reliable red LED is required.

AP2012EC Quick Information

Product Type: LED Indication - Discrete
Canonical Name: Kingbright AP2012EC Red SMD LED
Subcategory: Discrete LED

AP2012EC Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

AP2012EC Estimated Pricing

Qty Low High
1+ $0.06 $0.06

Estimated market price range - modelled values for guidance only, not live distributor offers.

AP2012EC Features

  • Red discrete SMD LED for indication.
  • Typical forward voltage of 2V.
  • Standard forward current of 20mA.
  • Luminous intensity of 15mcd.
  • Wide 120° viewing angle.

AP2012EC Applications

  • Ideal for status indicators.
  • Suitable for panel lighting.
  • Used in consumer electronics.
  • Applicable for general signaling.

AP2012EC FAQs

5 frequently asked questions generated from this part’s specifications.
What is the forward voltage of the AP2012EC LED?

The typical forward voltage for the AP2012EC LED is 2V.

What is the typical luminous intensity of the Kingbright AP2012EC?

The typical luminous intensity of the AP2012EC LED is 15mcd.

What package type is the AP2012EC LED supplied in?

The AP2012EC LED is supplied in an 0805 (2012 Metric) SMD package.

What is the viewing angle of the AP2012EC LED?

The typical viewing angle for the AP2012EC LED is 120 degrees.

What is the RoHS status of the AP2012EC LED?

The AP2012EC LED is RoHS3 Compliant.
