| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,154 pcs
|
2154 pcs | On Request | 1 | On Request | On Request | 14+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Halogen Free | |
| Internal Switch(s) | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| SVHC Present | |
| Supplier Device Package | |
| Supplier Package | |
| Type | |
| Voltage |

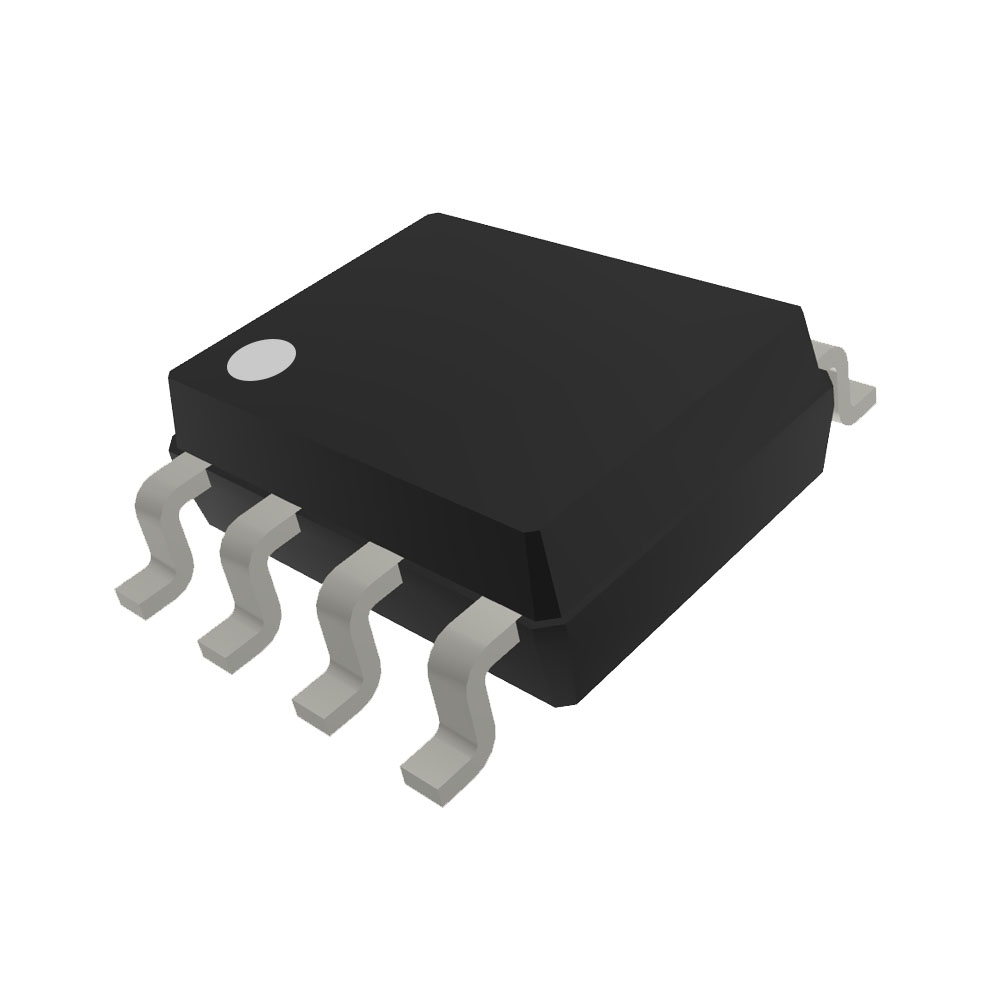

The AP1682MTR-G1 from Diodes Incorporated is a high-performance, AC/DC universal input, Primary Side Regulation Power Factor Controller specifically designed for LED driver applications. It utilizes Pulse Frequency Modulation (PFM) technology to accurately regulate output current while achieving high power factor and low Total Harmonic Distortion (THD).
This controller provides precise constant current (CC) regulation without the need for an opto-coupler or secondary control circuitry, simplifying the design and reducing component count. It also eliminates the requirement for control loop compensation circuitry, ensuring stability. The AP1682 meets the IEC61000-3-2 harmonic standard and offers features such as low start-up current, low operating current, and high efficiency.
Key protection features include over voltage, short circuit, over current, and over temperature protection. The device is available in a compact SOIC-8 package, suitable for surface mount applications. It is also Totally Lead-Free & Fully RoHS Compliant and a Halogen and Antimony Free "Green" Device.
Applications include single-stage power factor correction power supplies for LED lighting. The AP1682MTR-G1 is a cost-effective solution for total PFC LED driver designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.17 | $0.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-40°C to 105°C (TA)
8-SOIC
RoHS3 Compliant
1 Unlimited
REACH Unaffected
9V
