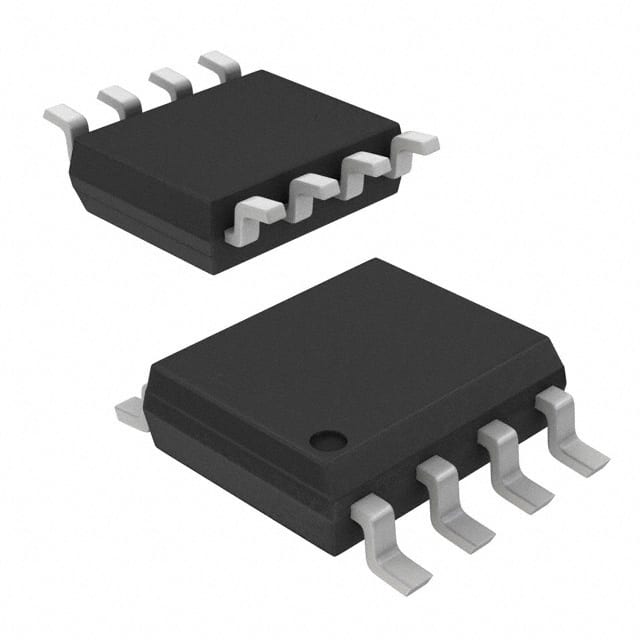

The Diodes Incorporated AP1530SL-13 is a step-down switching regulator with PWM control, designed for applications requiring efficient power conversion. It offers an adjustable output voltage from 0.8V up to VCC and can deliver up to 3A of output current.
Key electrical specifications include an input voltage range of 3.6V to 18V and a typical switching frequency of 300kHz. The device integrates features such as current limit, enable function, and thermal shutdown for protection. It is built with an internal P-channel Power MOS.
This component is housed in a surface-mount 8-SOP package, making it suitable for compact designs. The operating temperature range is -25°C to 85°C (TA). Applications include power supply units for portable devices and operation via AC adapters.
Note: This part is obsolete and discontinued.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.16 | $0.16 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 3.6V to 18V.
The output voltage is adjustable from 0.8V to 18V.
The maximum output current is 3A.
The switching frequency is 300kHz.
The operating temperature range is -25°C to 85°C.
The package is 8-SOIC (0.154", 3.90mm Width) surface mount, also available as SOP-8L and in Tape & Reel packaging.
No, it is a non-synchronous buck regulator.
