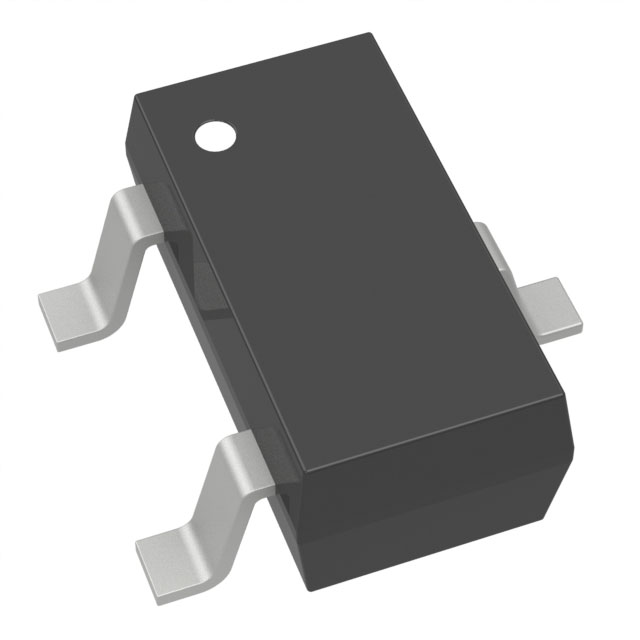

AP130-33WL-7 The Diodes Incorporated AP130-33WL-7 is a 3.3V, 300mA low dropout linear regulator in an SC-59-3 package. It operates with an input voltage range of 2.7V to 5.5V.
Mfr Part #:

AP130-33WL-7

Available from 1 distributors
Mfr Name: Diodes Incorporated
Diodes Incorporated
The Diodes Incorporated AP130-33WL-7 is a 3.3V, 300mA low dropout linear regulator in an SC-59-3 package. It operates with an input voltage range of 2.7V to 5.5V.
✓ Total Stock: 100 pcs
$ Price Range: $0.30

AP130-33WL-7 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
100 pcs
On Request
100 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AP130-33WL-7 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Input Voltage
Mounting Type
Number of Regulators
Operating Temperature
Output Configuration
Output Current
Output Type
PSRR
Protection Features
Supplier Device Package
Tape & Reel
Voltage
Voltage Dropout (Max)
View Similar Products (0)

AP130-33WL-7 Description

Short technical summary and product information.

The Diodes Incorporated AP130-33WL-7 is a fixed output voltage, low dropout (LDO) linear regulator designed for applications requiring stable power delivery. It provides a guaranteed 300mA output current with a precise 3.3V output voltage.



Key electrical specifications include an input voltage range of 2.7V to 5.5V and a low dropout voltage of 0.5V at 300mA. The regulator features protection mechanisms such as current limit and thermal shutdown to ensure device reliability. It also offers good load regulation and fast transient response.



This device is suitable for battery-powered devices and other critical current applications due to its low quiescent current, typically 50µA as per the datasheet. The AP130-33WL-7 is supplied in a surface-mount SC-59-3 package, facilitating integration into compact electronic designs.

AP130-33WL-7 Quick Information

Product Type: Linear Voltage Regulator
Canonical Name: AP130-33WL-7 3.3V 300mA Low Dropout Linear Regulator
Subcategory: Power Management (PMIC)

AP130-33WL-7 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

AP130-33WL-7 Estimated Pricing

Qty Low High
1+ $0.30 $0.30

Estimated market price range - modelled values for guidance only, not live distributor offers.

AP130-33WL-7 Features

  • 3.3V fixed output voltage.
  • Guaranteed 300mA output current.
  • Low dropout voltage of 0.5V.
  • Surface mount SC-59-3 package.
  • Over current and thermal protection.

AP130-33WL-7 Applications

  • Ideal for battery powered devices.
  • Suitable for PC peripherals.
  • Used in wireless communication.
  • Good for CD-ROM, DVD, LAN cards.

AP130-33WL-7 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage of the AP130-33WL-7?

The AP130-33WL-7 has a fixed output voltage of 3.3V.

What is the maximum output current for the AP130-33WL-7?

The AP130-33WL-7 can provide a maximum output current of 300mA.

What is the input voltage range for this regulator?

The input voltage range for the AP130-33WL-7 is 2.7V to 5.5V.

What is the dropout voltage of the AP130-33WL-7 at 300mA?

The dropout voltage is 0.5V at a 300mA output current.

What type of package is the AP130-33WL-7 supplied in?

The AP130-33WL-7 is supplied in an SC-59-3 surface-mount package.

What are the protection features of the AP130-33WL-7?

Protection features include over current, over temperature, and short circuit protection.

What is the typical quiescent current of the AP130-33WL-7?

The typical quiescent current is 50µA according to the datasheet, but the manufacturer page lists 100 µA.
