| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,287 pcs
|
1287 pcs | On Request | 1 | On Request | On Request | 0924+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Mounting Type | |
| Number of Regulators | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| Output Voltage | |
| PSRR | |
| Protection Features | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Voltage | |
| Voltage Dropout (Max) |

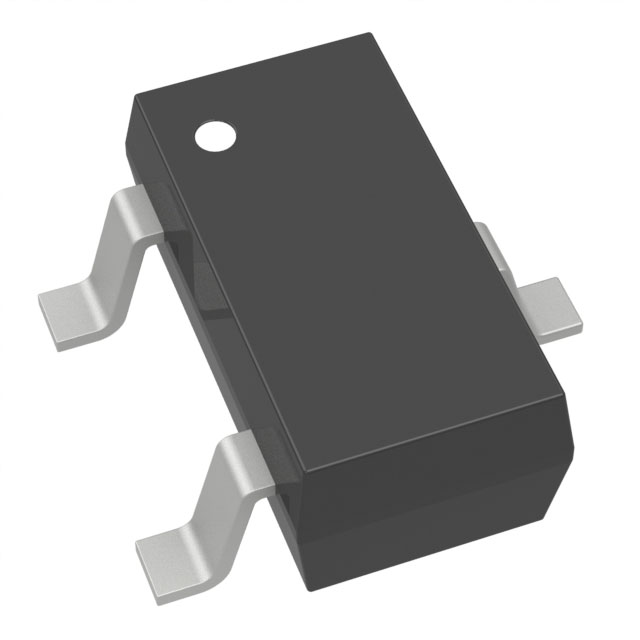

The AP130-33RG-7 from Diodes Incorporated is a fixed output voltage, low dropout (LDO) linear regulator designed for efficient power management. It provides a stable 3.3V output at up to 300mA with a low dropout voltage of 400mV at full load, making it suitable for battery-powered devices and other power-sensitive applications.
Key electrical characteristics include a wide input voltage range of 2.7V to 5.5V, a typical quiescent current of 50µA, and an accuracy of 2%. The regulator incorporates essential protection features such as current limit, thermal shutdown, and short circuit fold-back to ensure device reliability and prevent damage under fault conditions.
This component is supplied in a compact SC-59R surface-mount package (TO-236-3, SC-59, SOT-23-3), measuring 1.1mm in height, 1.6mm in width, and 3mm in length. Its operating temperature range is -40°C to 85°C (TA), and it is RoHS compliant.
The AP130-33RG-7 is well-suited for applications requiring a clean, regulated voltage supply, including battery-powered devices, CD-ROMs, DVD drives, LAN cards, and PC peripherals.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2.7V to 5.5V.
Fixed 3.3V.
300mA guaranteed.
Typical 400mV at 300mA.
Typical 50µA.
-40°C to 85°C.
SC59R (SOT-23-3 compatible).
