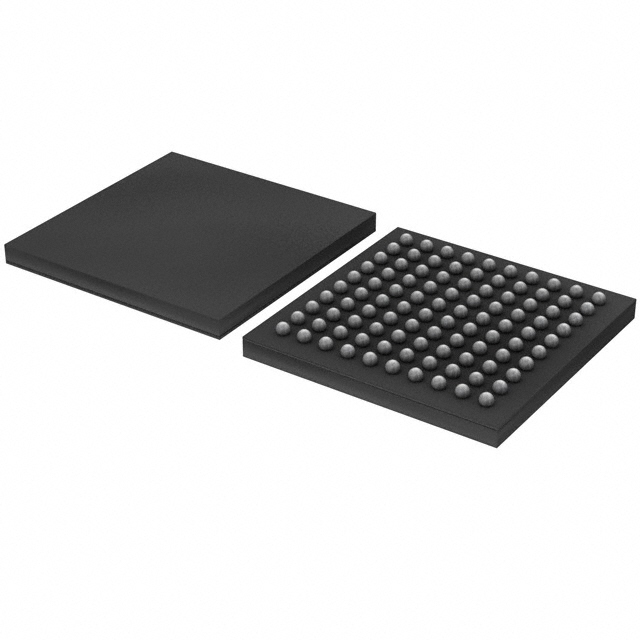

The AP0100CS2L00SUGA0-DR1 from On Semiconductor is a digital image signal processor designed for high-dynamic-range sensors. It offers advanced features such as auto white balance (AWB) and auto exposure (AE) support, along with Adaptive Local Tone Mapping (ALTM) to enhance HDR images. The processor includes advanced noise reduction for improved low-light performance.
Key technical specifications include a maximum resolution of 1280 x 960 (1.2Mp), with NTSC output at 720H x 487V and PAL output at 720H x 576V. It supports various input and output formats, including RAW12/RAW14 input and YUV422 or tone-mapped Bayer output. The device operates with supply voltages ranging from 1.8V to 3.3V and has a power consumption of 185 mW.
This image signal processor is optimized for professional video applications and supports standards such as NTSC, PAL, and SMPTE. It features primary camera interfaces including Parallel and HiSPi, and an output interface that supports analog composite and up to 16-bit parallel digital output. The AP0100CS2L00SUGA0-DR1 is supplied in a 100-VFBGA package and is designed for surface mounting.
Additional features include auto flicker detection, programmable spatial transform engine, pre-rendered graphical overlay, and a two-wire serial programming interface (CCIS). It also supports multi-camera synchronization and has an integrated video encoder for NTSC/PAL outputs.
The device requires multiple supply rails, including VDD 1.2V, VDDIO_S 1.8/2.8V, VDDIO_H 2.5/3.3V, VDD_REG 1.8V, VDDA_DAC 3.3V, VDDIO_OTPM 2.5/3.3V, VDD_PHY 2.8V, and VDD_PLL/VDD_DAC 1.2V.
It comes in a 100-VFBGA (7x7) surface-mount package.
-30°C to +70°C.
1280 x 960 pixels (1.2 megapixel).
Camera input supports Parallel and HiSPi; output supports analog composite and up to 16-bit parallel digital.
185 mW.
45 fps at 1.2 megapixel and 60 fps at 720p.
