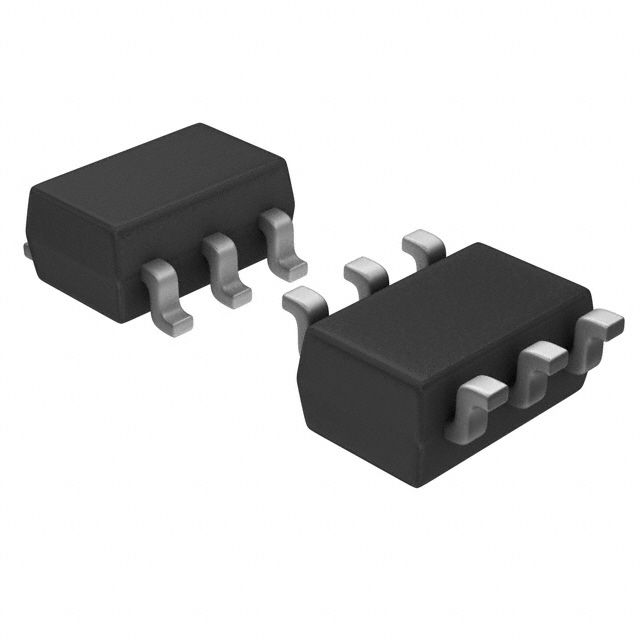

The AOZ8904CIL is an ultra-low capacitance transient voltage suppressor array designed to protect high-speed data lines from ESD and lightning. It features four unidirectional channels in a rail-to-rail steering configuration, making it suitable for USB 2.0 and other high-speed interfaces.
Key electrical specifications include a reverse standoff voltage of 5.5V, a maximum clamping voltage of 18V at 4A peak pulse current (8/20µs), and a peak pulse power rating of 50W. The device provides exceptional ESD protection exceeding IEC 61000-4-2 standards at ±24kV contact and air discharge, as well as ±24kV HBM.
With a typical capacitance of only 1.25pF at 1MHz, the AOZ8904CIL minimizes signal degradation on high-speed data lines. It is housed in a compact surface-mount SOT-23-6 package and operates over a temperature range of -40°C to +125°C. The device is RoHS compliant and halogen free.
The reverse standoff voltage is 5.5V typical.
The maximum clamping voltage is 18V at 4A peak pulse current (8/20µs).
The maximum peak pulse current is 4A under 8/20µs test condition.
The device is supplied in a surface-mount SOT-23-6 package.
Typical capacitance is 1.25pF at 1MHz.
It exceeds IEC 61000-4-2 ±24kV contact and air discharge, and HBM ±24kV.
