| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,750 pcs
|
7750 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Bidirectional Channels | |
| Capacitance | |
| Capacitance @ Frequency | |
| Clamping Voltage | |
| Current | |
| ESD Rating (Air) | |
| ESD Rating (Contact) | |
| ESD Rating (HBM) | |
| Halogen Free | |
| Mounting Type | |
| Operating Temperature | |
| Package Dimensions | |
| Packaging Method | |
| Peak Pulse Current | |
| Peak Pulse Power | |
| Power | |
| Power Line Protection | |
| Supplier Device Package | |
| Type | |
| Voltage | |
| Working Peak Reverse Voltage (Max) | |
| breakdown_voltage_min |
The AOZ8831DT-24 is an ultra-low capacitance one-line bi-directional transient voltage suppressor (TVS) diode from Alpha and Omega Semiconductor. It is designed to protect high-speed data lines and voltage-sensitive electronics from electrostatic discharge (ESD) and other transient events. The device features a working peak reverse voltage of 24V, a minimum breakdown voltage of 26V, and a maximum clamping voltage of 48V at 1A.
This TVS diode provides robust ESD protection, meeting IEC 61000-4-2 Level 4 with ±15kV air discharge and ±13kV contact discharge, as well as HBM ±15kV per MIL-STD-883. With an ultra-low typical capacitance of 0.35pF at 1MHz, it is ideal for high-speed data interfaces such as USB, HDMI, and Ethernet. The device is rated for a peak pulse current of 1.2A (8/20µs) and a peak pulse power of 60W.

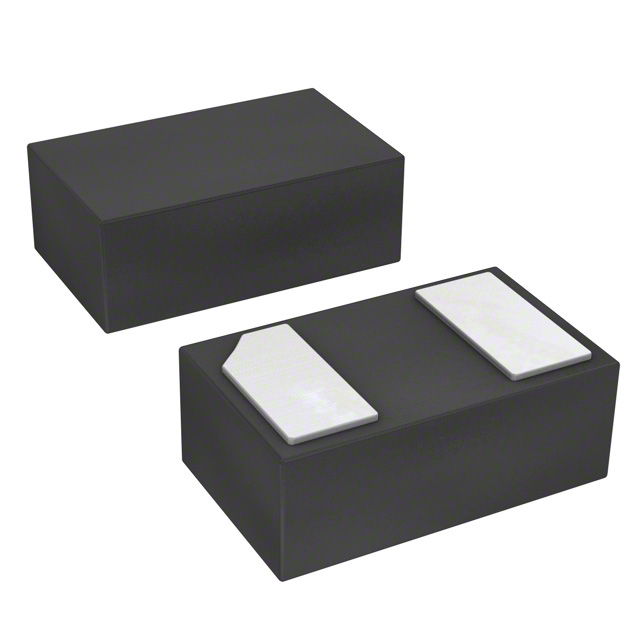

The AOZ8831DT-24 is housed in a compact DFN 1.0x0.6mm package (2-XDFN, supplier device package 2-DFN), making it suitable for space-constrained designs. It is surface mountable and supports tape and reel packaging. The device is lead-free and halogen-free per the datasheet, and is rated for operation over a junction temperature range of -40°C to +125°C. Typical applications include portable handheld devices, notebook computers, digital cameras, and portable GPS units.
| Qty | Low | High |
|---|---|---|
| 10,000+ | $0.07 | $0.07 |
| 20,000+ | $0.07 | $0.07 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum working peak reverse voltage is 24V.
The minimum breakdown voltage is 26V.
The maximum clamping voltage is 48V at a peak pulse current of 1A.
The maximum peak pulse current is 1.2A (8/20µs waveform).
The typical capacitance is 0.35pF at 0V bias and 1MHz.
It provides ±13kV contact and ±15kV air discharge per IEC 61000-4-2, and ±15kV HBM per MIL-STD-883.
It is available in a DFN 1.0x0.6mm package (2-XDFN, supplier device package 2-DFN).
