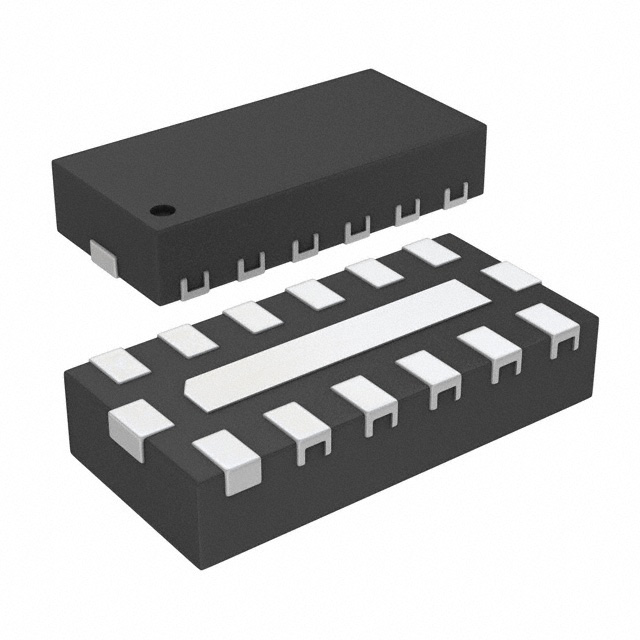

AOZ8535DI The AOZ8535DI is a 3rd order LC (Pi) low pass EMI/RFI filter with a 450MHz cutoff frequency, 6 channels, and integrated ESD protection.
Mfr Part #:

AOZ8535DI

Available from 1 distributors
Mfr Name: Alpha&Omega Semicondu Ctor
Alpha&Omega Semicondu Ctor
The AOZ8535DI is a 3rd order LC (Pi) low pass EMI/RFI filter with a 450MHz cutoff frequency, 6 channels, and integrated ESD protection.
✓ Total Stock: 6,000 pcs
$ Price Range: $0.20

AOZ8535DI Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
6,000 pcs
On Request
6000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AOZ8535DI Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Attenuation Value
Center
ESD Protection
Filter Order
Height
Length
Mounting Type
Number of Channels
Operating Temperature
Tape & Reel
Technology
Type
Values
Voltage
Width
View Similar Products (0)

AOZ8535DI Description

Short technical summary and product information.

The AOZ8535DI is a 3rd order LC (Pi) low pass EMI/RFI filter designed for data lines in mobile devices. It features a cutoff frequency of 450MHz and provides -25dB attenuation from 800MHz to 3GHz. The filter integrates six channels with L = 17nH and C = 16pF values, and includes ESD protection for enhanced reliability.



This surface-mount filter operates over a temperature range of -40°C to 85°C and is rated for 5V operation. It is housed in a compact 12-UFDFN exposed pad package measuring 2.50mm x 1.20mm x 0.60mm, making it suitable for space-constrained applications.

AOZ8535DI Quick Information

Product Type: EMI/RFI Filter (LC, RC Networks)
Canonical Name: AOZ8535DI LC (Pi) Low Pass EMI/RFI Filter
Subcategory: LC (Pi) Network

AOZ8535DI Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

AOZ8535DI Estimated Pricing

Qty Low High
3,000+ $0.20 $0.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

AOZ8535DI Features

  • 3rd order LC (Pi) low pass filter.
  • 450MHz cutoff frequency.
  • 6 channels with L=17nH, C=16pF.
  • Integrated ESD protection.
  • Surface mount 12-UFDFN package.

AOZ8535DI Applications

  • Data line filtering for mobile devices.
  • EMI suppression in portable electronics.
  • RF interference reduction in compact designs.

AOZ8535DI FAQs

6 frequently asked questions generated from this part’s specifications.
What is the cutoff frequency of the AOZ8535DI?

The cutoff frequency is 450 MHz.

What is the operating temperature range?

The operating temperature range is -40°C to 85°C.

What is the package type for the AOZ8535DI?

The package is 12-UFDFN Exposed Pad, surface mount.

Does the AOZ8535DI include ESD protection?

Yes, it includes ESD protection.

What is the attenuation of the AOZ8535DI?

Typical attenuation is -25 dB from 800 MHz to 3 GHz.

What is the rated voltage for the AOZ8535DI?

The rated voltage is 5V.
