Mfr Part #:

AOZ8030DIL

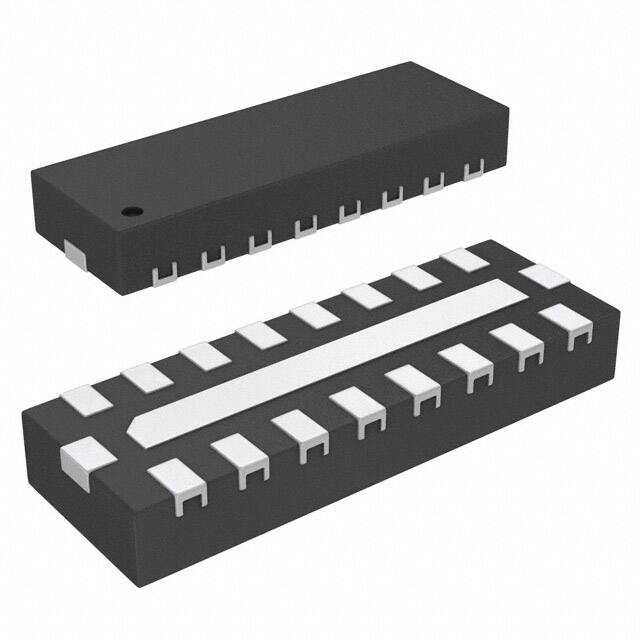

Name: AOZ8030DIL
Brand: ALPHA & OMEGA SEMICONDU CTOR
SKU: AOZ8030DIL

Description:

FILTER RC(PI) 100 OHM/28PF SMD

Stock on Request

AOZ8030DIL Description

Short technical summary and product information.

FILTER RC(PI) 100 OHM/28PF SMD

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	EMIRFI Filters (LC, RC Networks)
Manufacturer Name	ALPHA & OMEGA SEMICONDU CTOR
Applications	Data Lines for Mobile Devices
Attenuation Value	-35dB @ 800MHz ~ 2.2GHz
Center	90MHz (Cutoff)
Current	20 mA
ESD Protection	Yes
Filter Order	2nd
Height	0.024" (0.60mm)
Mounting Type	Surface Mount
Number of Channels	8
Operating Temperature	-40°C ~ 85°C
Resistance	100
Size	0.138" L x 0.047" W (3.50mm x 1.20mm)
Technology	RC (Pi)
Type	Low Pass
Values	R = 100Ω, C = 28pF
Voltage	5V
