| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,100 pcs
|
8100 pcs | On Request | 1 | On Request | On Request | 19+18+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Efficiency | |
| Mounting Type | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Tape & Reel | |
| Voltage |

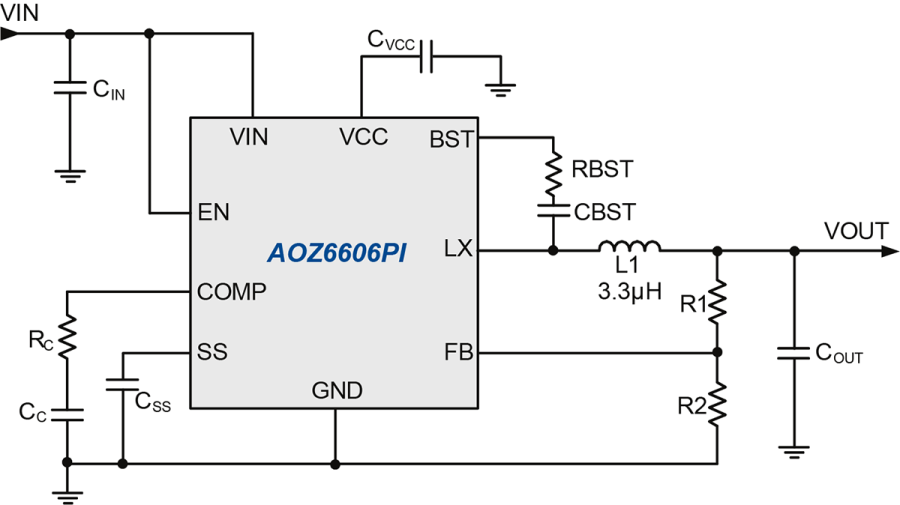

The AOZ6606PI from AOS is an EZBuck™ 6A synchronous buck regulator designed for efficient power conversion. It operates within a wide input voltage range of 4.5V to 18V and can deliver up to 6A of continuous output current. The output voltage is adjustable down to 0.8V.
This regulator features internal low RDS(ON) MOSFETs, with the high-side at 52mΩ and the low-side at 24mΩ. It operates at a fixed switching frequency of 600kHz and includes Pulse Energy Mode (PEM) for high efficiency at light loads, achieving over 86% efficiency at 10mA load (12V input, 5V output).
Extensive protection features are integrated, including adjacent pin short protection, cycle-by-cycle current limit, and pre-bias start-up. The AOZ6606PI is supplied in an 8-pin EPAD-SO8 package, suitable for surface mounting. It is rated for an operating ambient temperature range of -40°C to +85°C.
Applications for the AOZ6606PI include high-reliable DC/DC converters, high-performance LCD TVs, and high-performance cable modems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AOZ6606PI operates from a 4.5V to 18V input voltage range.
The AOZ6606PI provides up to 6A of continuous output current.
The output voltage of the AOZ6606PI is adjustable down to 0.8V.
The AOZ6606PI operates at a fixed switching frequency of 600kHz.
The AOZ6606PI is rated for an operating ambient temperature range of -40°C to +85°C.
The AOZ6606PI comes in an 8-pin EPAD-SO8 package.
